BBCAlternator Bracket - for Electric WP - Head & WP Mounted

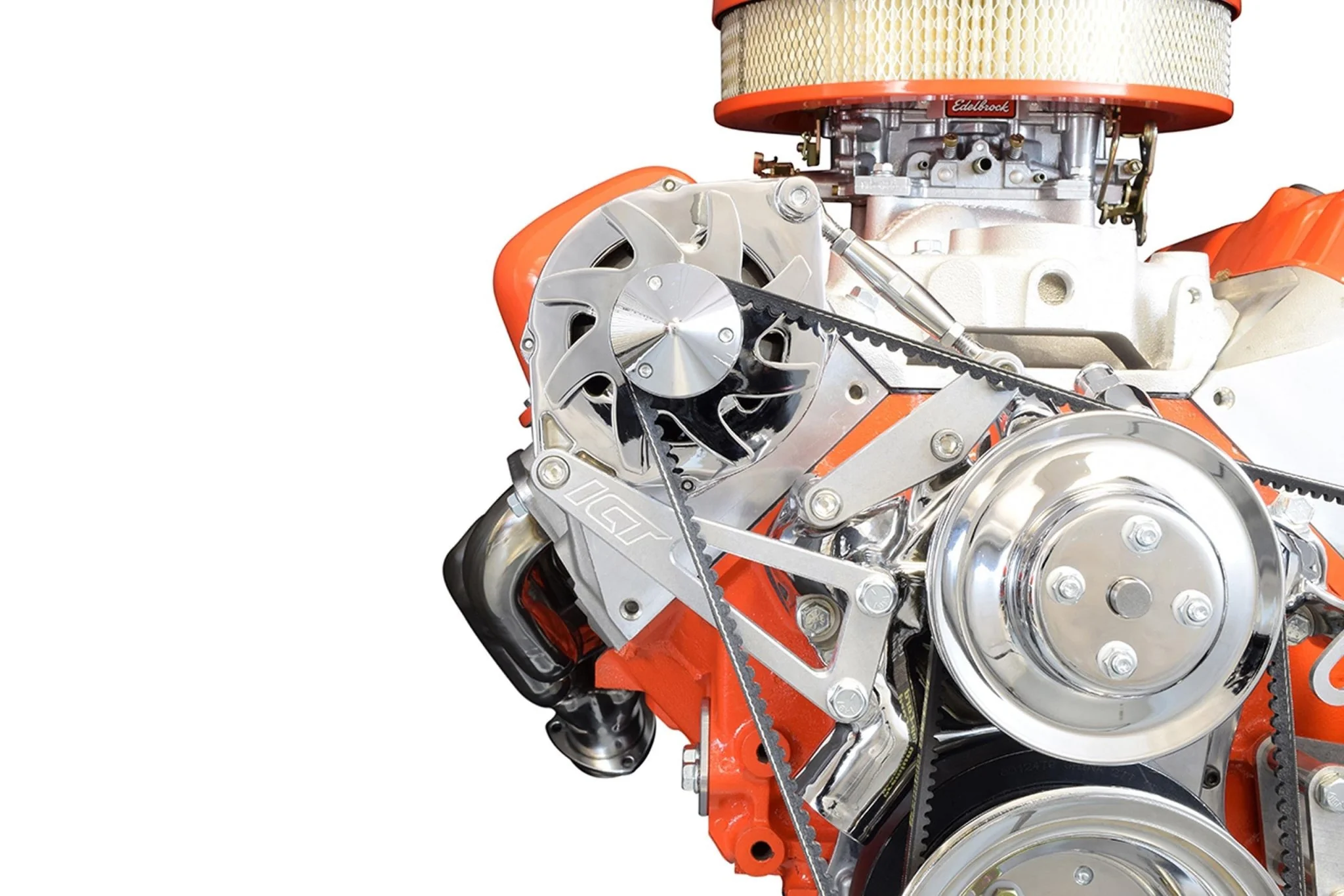

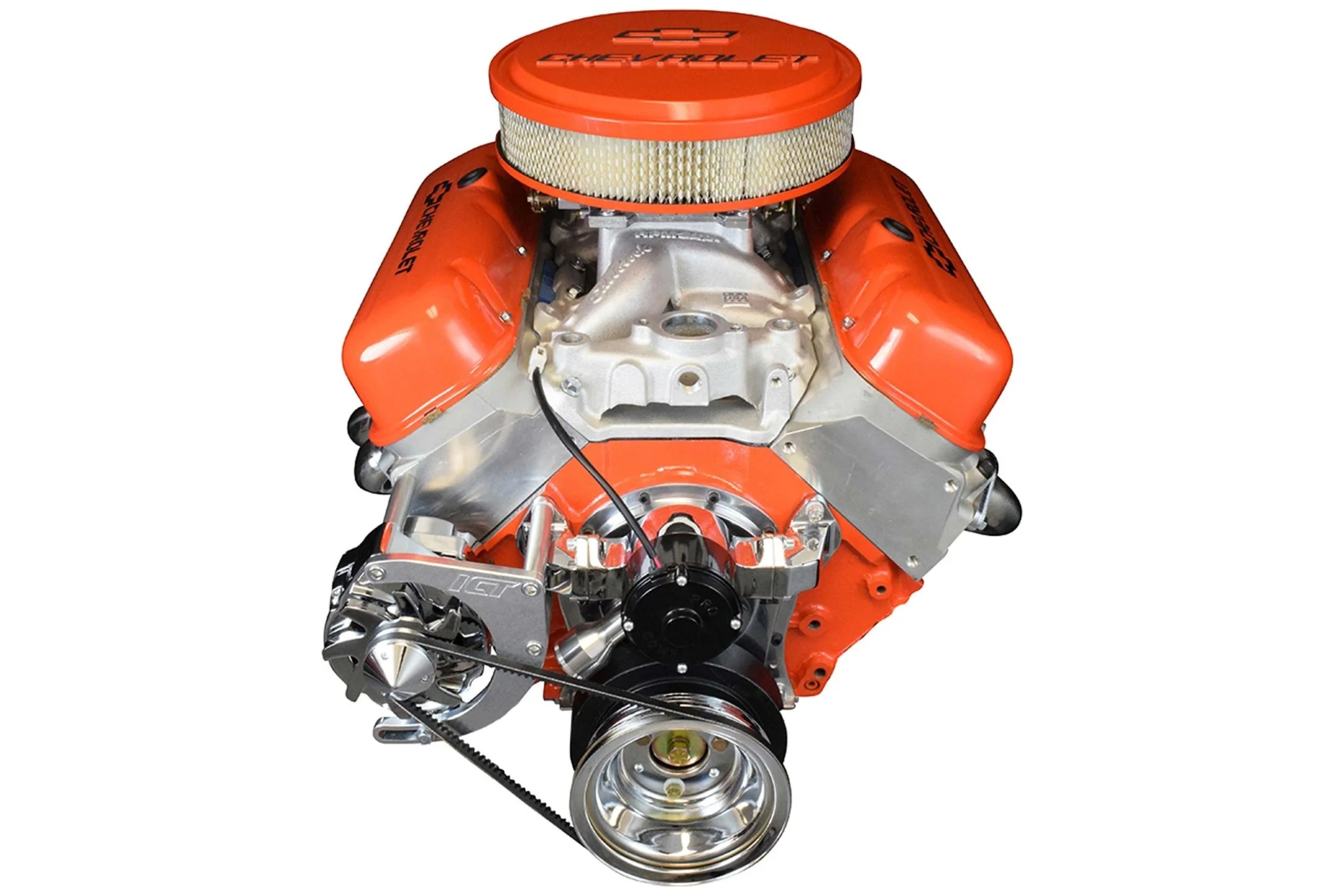

BBC Low Mount Billet Alternator Bracket for Electric Water Pump
Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum
- Bracket mounts to cylinder head and water pump
- Does NOT include pulleys
- This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)
- Includes: bracket, instructions, and mounting hardware
Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts). If the hole is larger then also purchase 7/16" bolt #551663-B0LT.
Pulleys (or similar OE style, V-Rib ONLY)
- Suggested Crank Pulley #14023148
- Suggested Water Pump DWP-442
Belt Length
- Alternator uses 38.5" V-belt - Gates 7385 (with factory diameter pulleys)
Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications shown with part# E-5927-P electric water pump
*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093
Product Information
Product Information
Shipping & Returns
Shipping & Returns
BBCAlternator Bracket - for Electric WP - Head & WP Mounted
BBCAlternator Bracket - for Electric WP - Head & WP Mounted
BBC Low Mount Billet Alternator Bracket for Electric Water Pump
Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum
- Bracket mounts to cylinder head and water pump
- Does NOT include pulleys
- This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)
- Includes: bracket, instructions, and mounting hardware
Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts). If the hole is larger then also purchase 7/16" bolt #551663-B0LT.
Pulleys (or similar OE style, V-Rib ONLY)
- Suggested Crank Pulley #14023148
- Suggested Water Pump DWP-442
Belt Length
- Alternator uses 38.5" V-belt - Gates 7385 (with factory diameter pulleys)
Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications shown with part# E-5927-P electric water pump
*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BBC Low Mount Billet Alternator Bracket for Electric Water Pump
Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum
- Bracket mounts to cylinder head and water pump
- Does NOT include pulleys
- This kit will ONLY work with LONG water pump, V-belt (1, 2, or 3 rib pulleys)
- Includes: bracket, instructions, and mounting hardware
Cylinder head must have 3/8" threaded hole (same thread as water pump to block bolts). If the hole is larger then also purchase 7/16" bolt #551663-B0LT.
Pulleys (or similar OE style, V-Rib ONLY)
- Suggested Crank Pulley #14023148
- Suggested Water Pump DWP-442
Belt Length
- Alternator uses 38.5" V-belt - Gates 7385 (with factory diameter pulleys)
Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications shown with part# E-5927-P electric water pump
*uses 12si style alternators (6.56" center to center bolt holes) such as AC Delco # 335-1093
