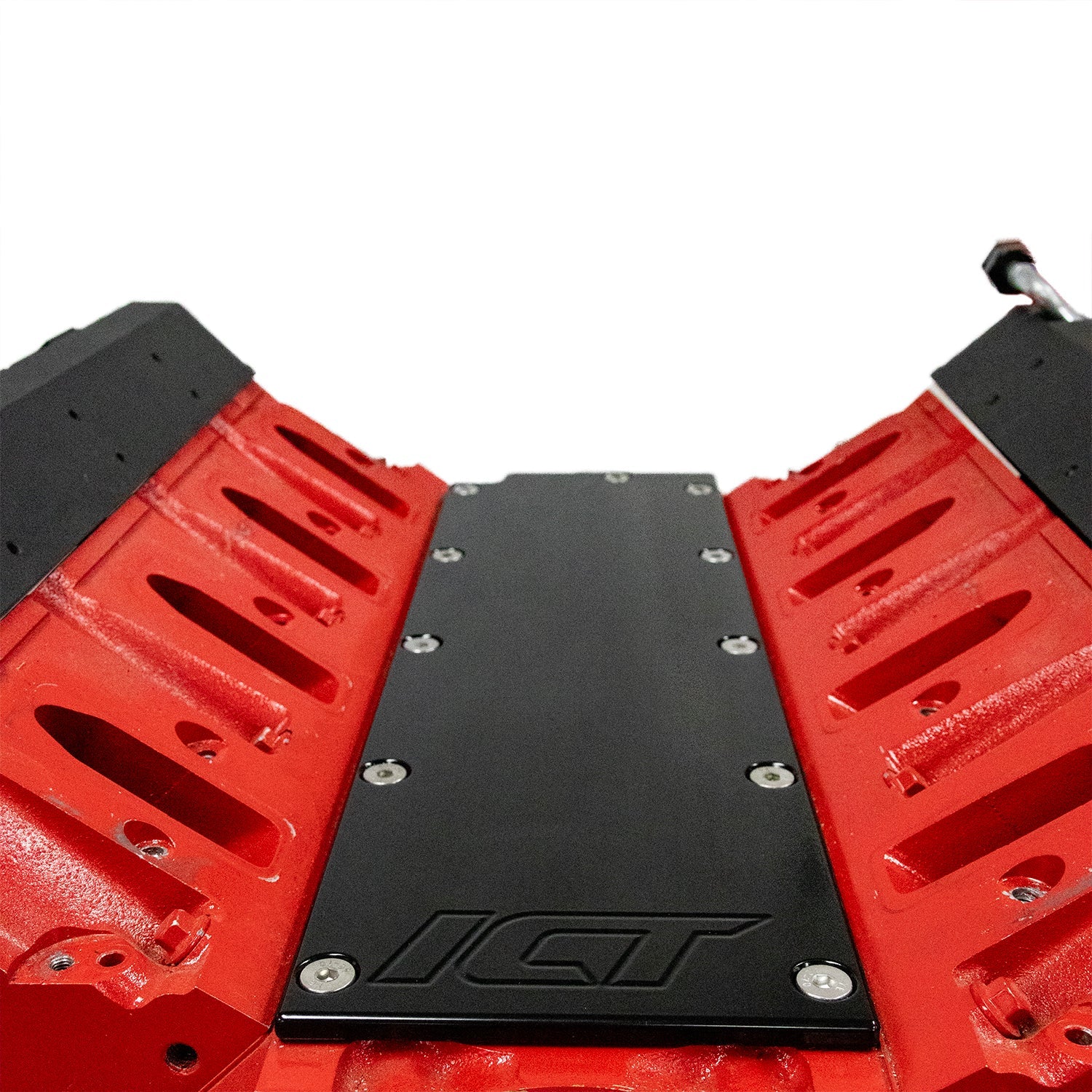

Black LS Gen 4 O-ringed Valley Pan Cover Plate for DOD Delete
Black Low Profile Valley Pan w/ O-ring Seal for DOD Delete
Achieve that sleek look with this black Cerakote billet valley cover
- Compatible with Gen IV Engine Blocks LS2 LS3 LS7 LH6 L92 L76 LY2 LY5 LY6 LC9 LFA LH8 LMG L98 L9H L20 L94 LZ1 L99 L96 LC8 L77
- No need to drill, tap, and plug DOD oil port in engine block (uses seals built into valley cover to plug these)
- Must relocate oil pressure sensor (see below options)
- Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
- Package Includes: O-rings, Stainless Steel Bolts, and Valley Pan
- Black Cerakote Finish
Helpful Links
- Valley cover bolts torque to 18 ft-lbs
- Replacement -206 oring
- Optional oil pressure sensor relocation adapter to oil pan, or valley cover mounted sensor (must drill hole in valley cover) adapter: straight M16-1.5mm or 1/8" NPT (or 90 degree M16-1.5mm / 1/8"NPT)
- Replacement hardware and seals kit
