Hellcat Supercharger to LT Gen V Engine Adapter Kit

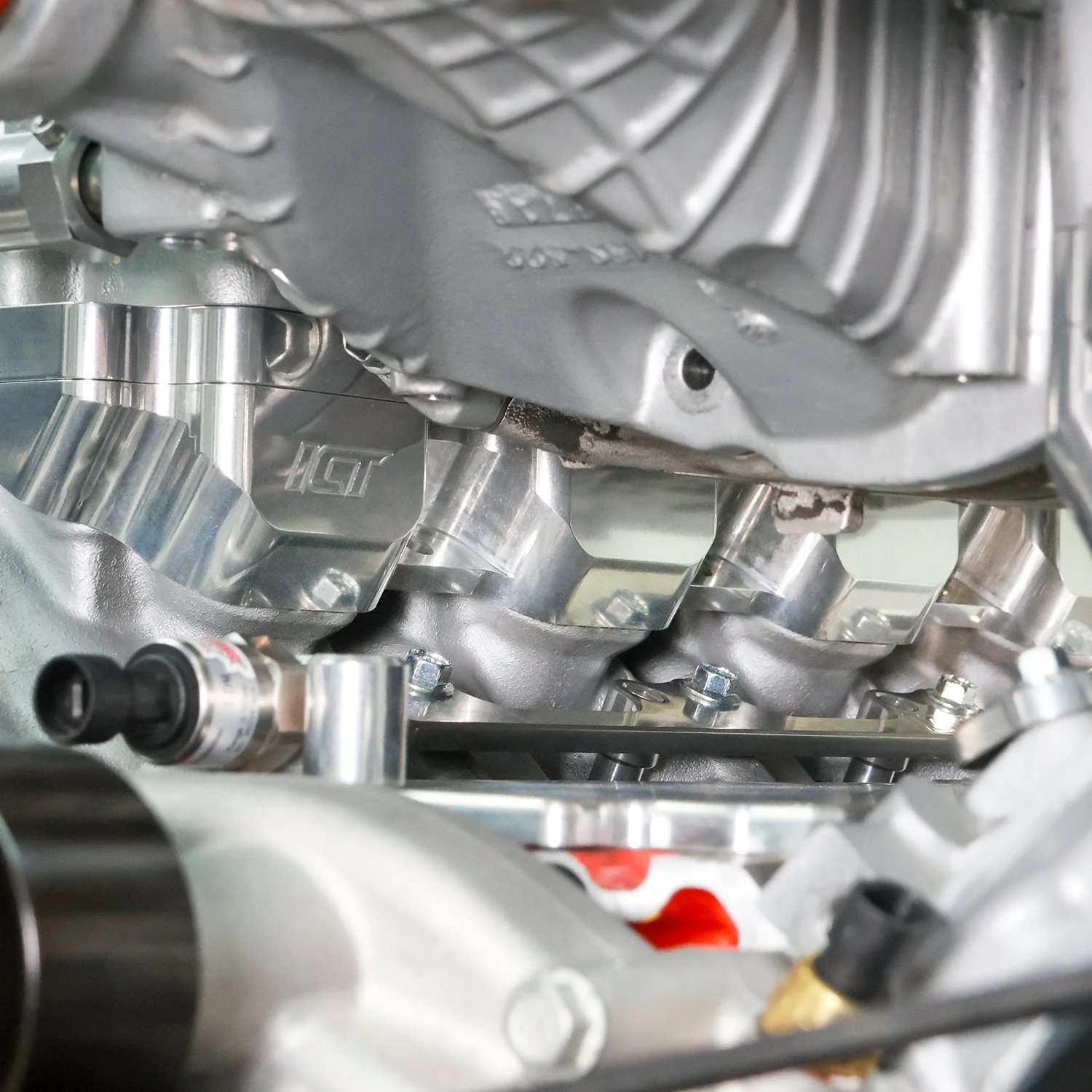

Bolt a Hellcat Blower onto Your LT Engine. This adapter kit allows you to mount a Hellcat supercharger onto an LT engine, making those sweet hellcat supercharger noises!

• Compatible with LT Gen V RPO codes: L82 L83 L84 L86 L87 LT1 LT2 L8B, L8P, L8T LT4 LT5
• Dual bolt pattern allows these adapters to bolt to both styles of LT cylinders heads
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
• Converts Hellcat supercharger pulley to 8 rib LT4 Camaro spacing with billet hub and 3" pulley

• Works with dual belt LT4 Camaro accessory drives for independent blower and accessory belts
• Compatible with hellcat, trx, and redeye superchargers

*Torque spec on the hub to the shaft to 70 FT-LBS*

*Torque spec on the 10 Bolts for the pulley to the hub are 26 INCH-LBS*

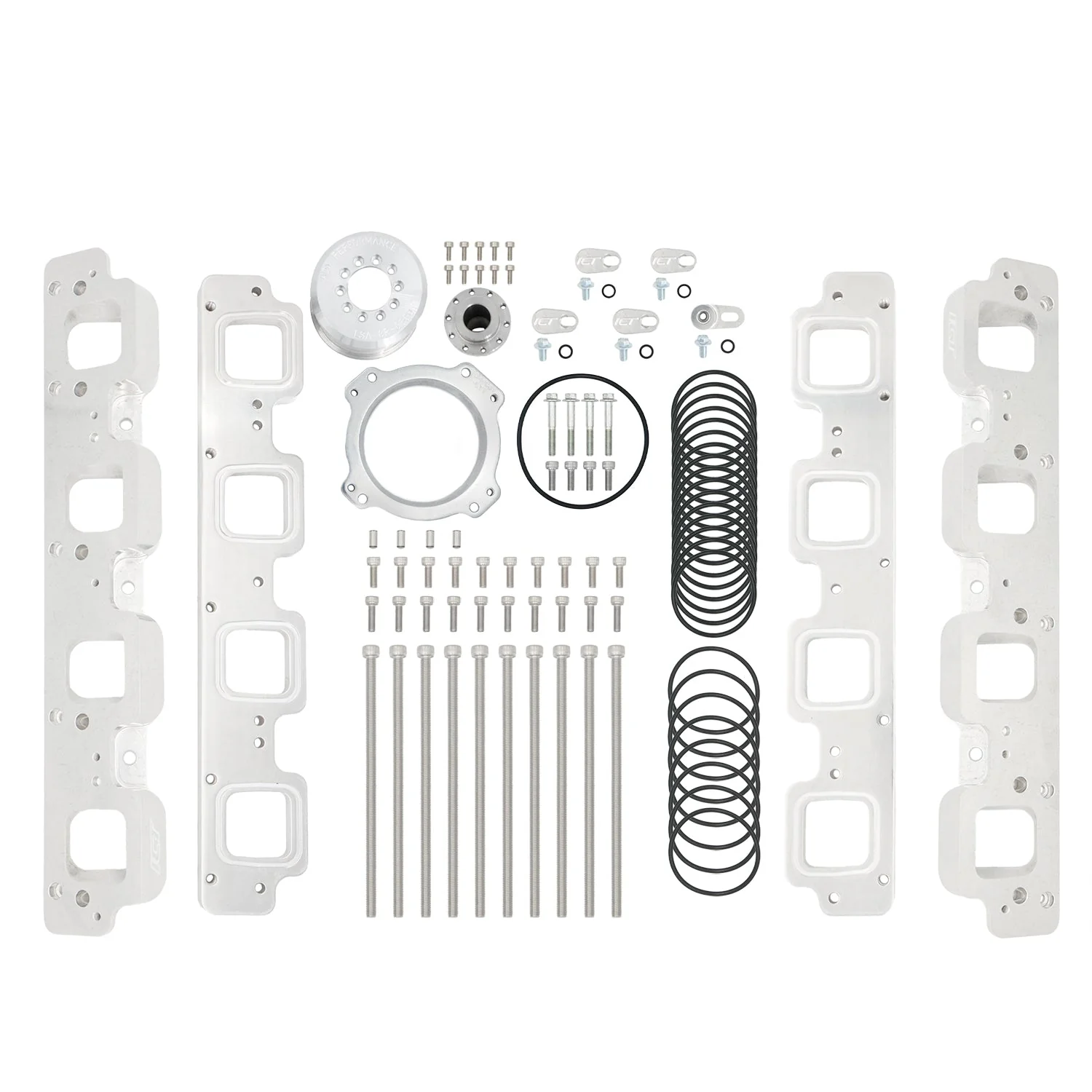

Includes:

1. 1. LT1 (or any LT 6.2L TB) throttle body adapter plate
   2. MAP sensor port plugs x4
   3. MAP 1/8" NPT port (551387) allows GM sensors to connect with a hose

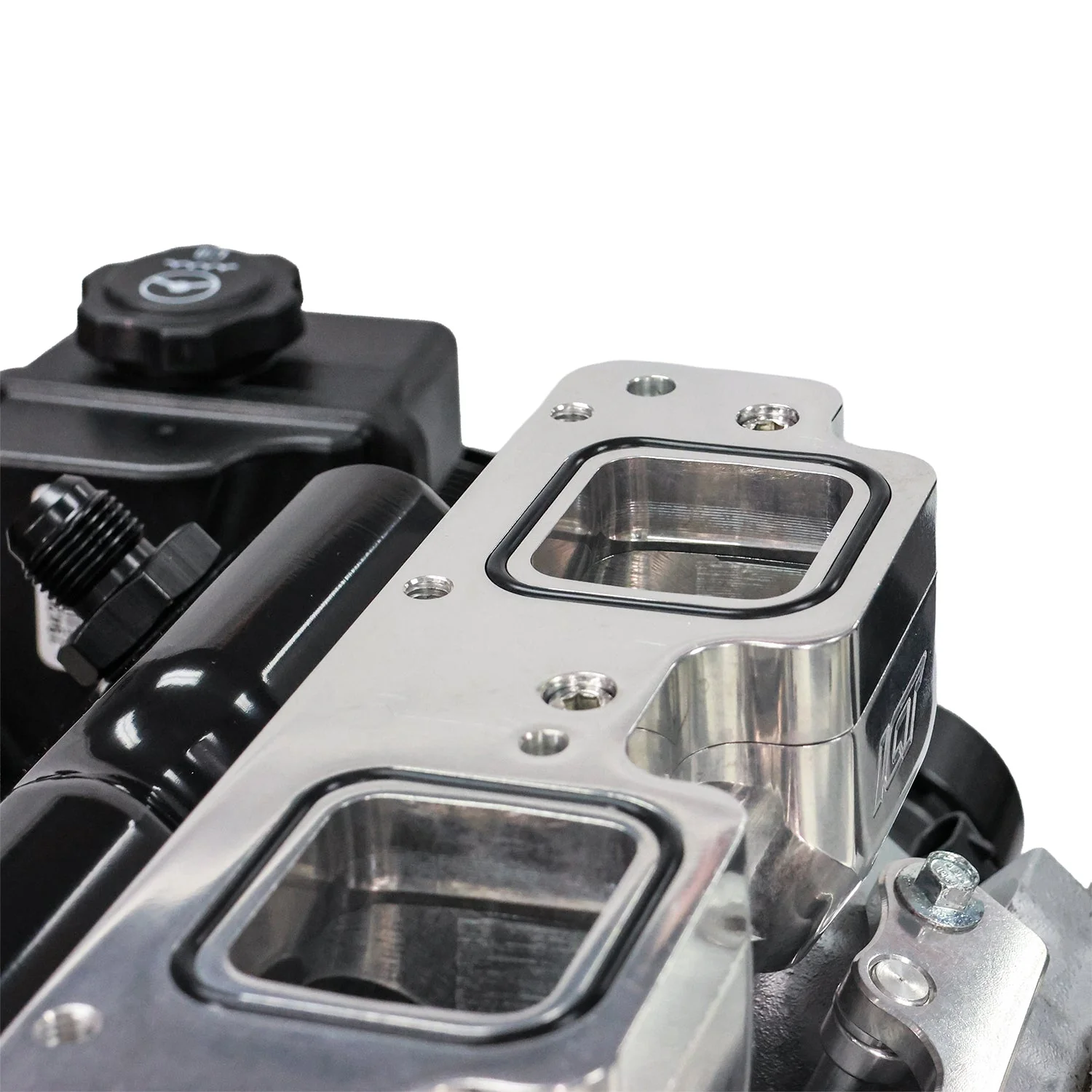

   4. Head to supercharger adapters (orings provided for upper and lower sides)
   5. Supercharger hub and 3" diameter pulley with bolts
   6. Bolts for supercharger to adapter plates


Helpful Links

• Replacement -228 oring, and -229 oring
