LS - 4-Rib - Sanden 7176 A/C Air Conditioner Compressor Bracket Kit

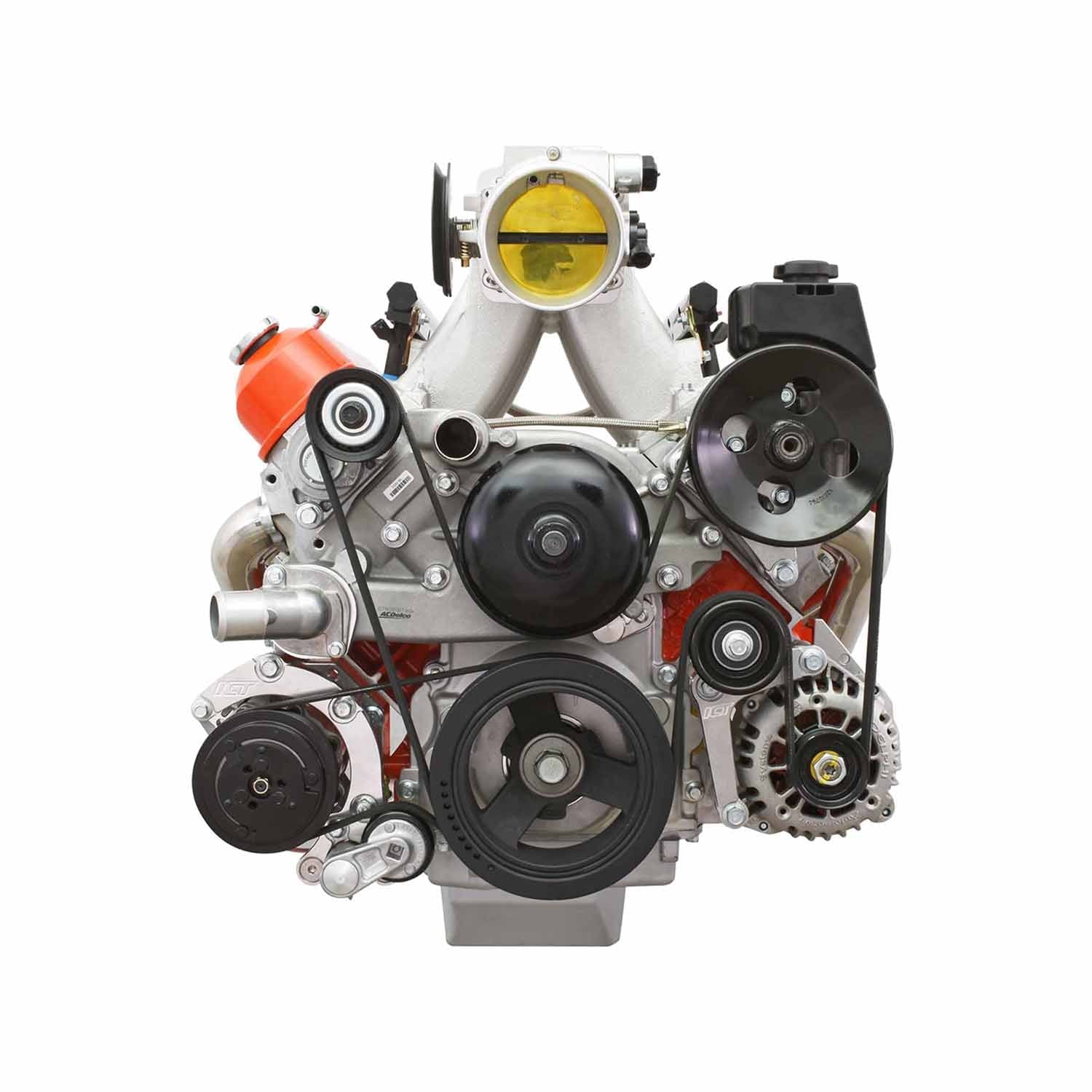

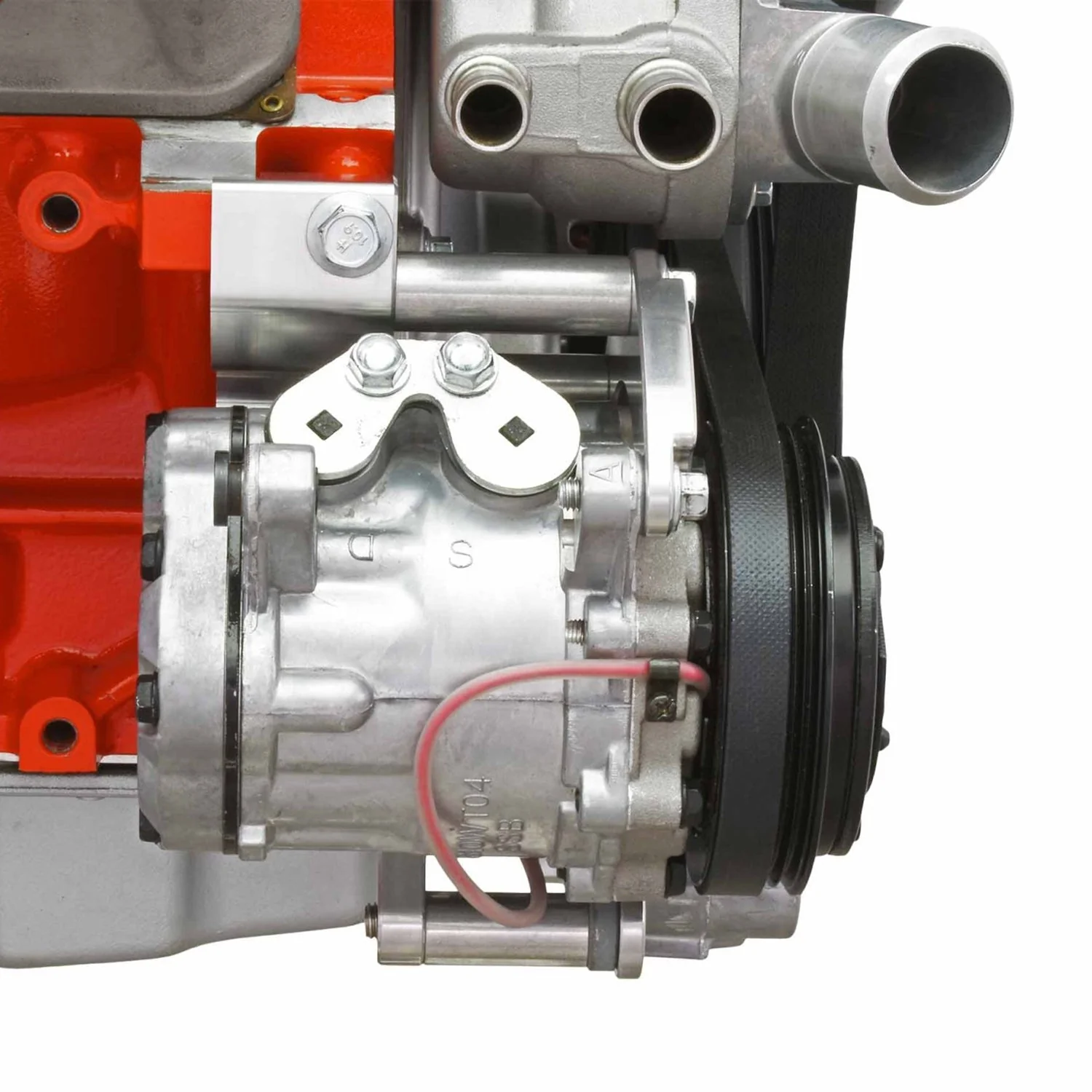

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

• Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
• Compatible with 1998-2002 Camaro LS1 (2004-06 GTO) harmonic balancer

• Compatible with LS1 Camaro water pump (ICT# WAT200)
• Not compatible with "stock" small block chevy motor mount location, using ICT Billet LS swap plates (ICT# 51628)
• Includes: bracket, mounting hardware, and belt tensioner
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

Compatible with (based on vehicle 3D scans by ICT)

• Nissan 240SX, S14   95-98

Belt length (373K4) (37.3 inch) *note this does NOT fit factory style LS vehicle a/c compressors

*note if using UMI sway bay in a 1998-02 Camaro then you need to remove the tensioner and use a 2012 Silverado 5.3L stretch belt
