LS A/C Bracket R4 - LS1 Camaro Spacing

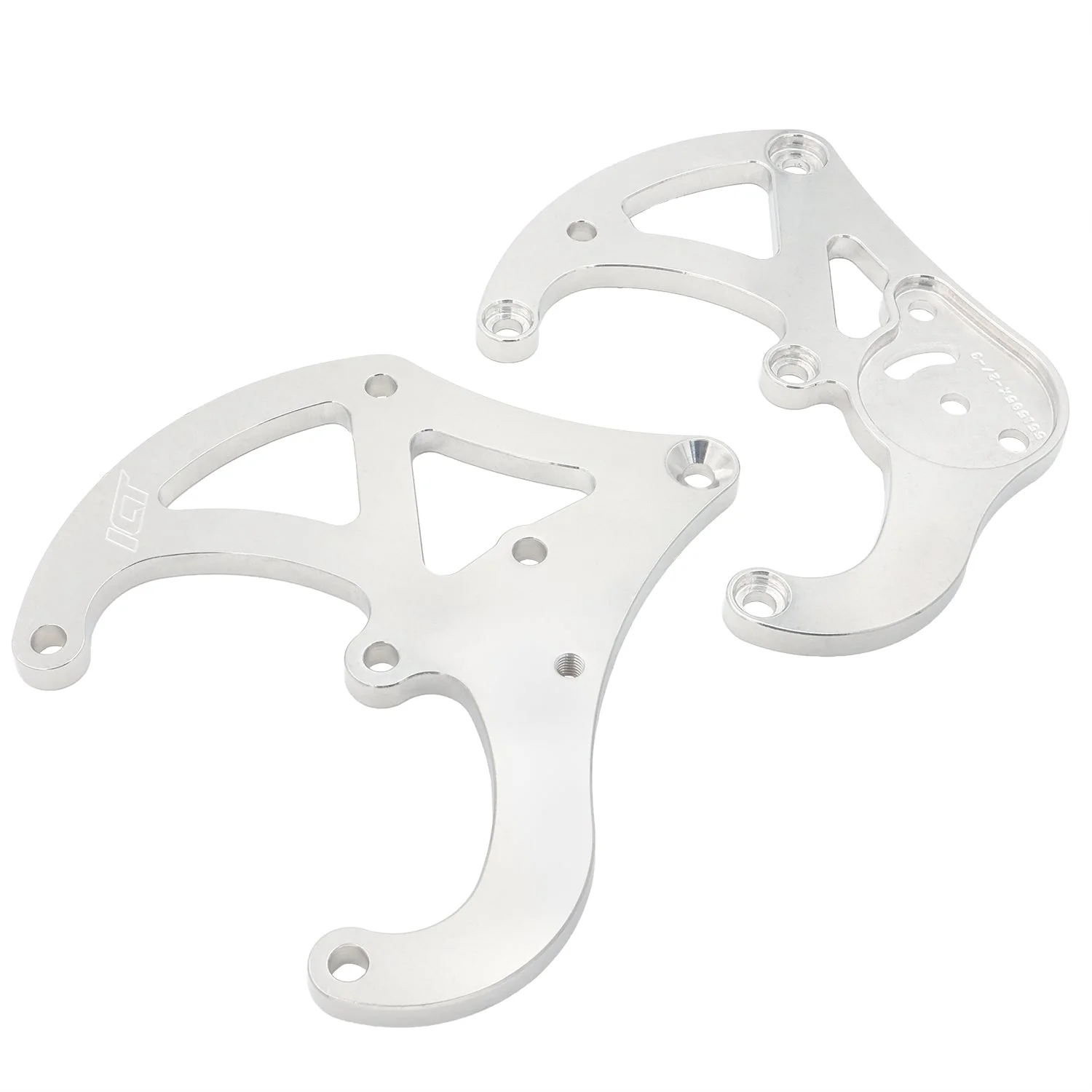

Camaro R4 A/C Compressor Heavy Duty Bracket Kit for LS1 LSX
- Includes: A/C compressor bracket, belt tensioner, and mounting hardware
- Can be used with ACDELCO A/C compressor Part #
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Compatible with 1998-2002 Camaro LS1 (2004-06 GTO) harmonic balancer
Belt length with 105 amp alternator and ICT 551521-2: 970K6 (97.0 inch) Belt length with 105 amp alternator and ICT 551669-2: 980K6 (98.0 inch) This does NOT use the factory style LS vehicle a/c compressors (25891791) If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley. Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
