LS Alternator Bracket - Corvette Spacing (Low Mount)

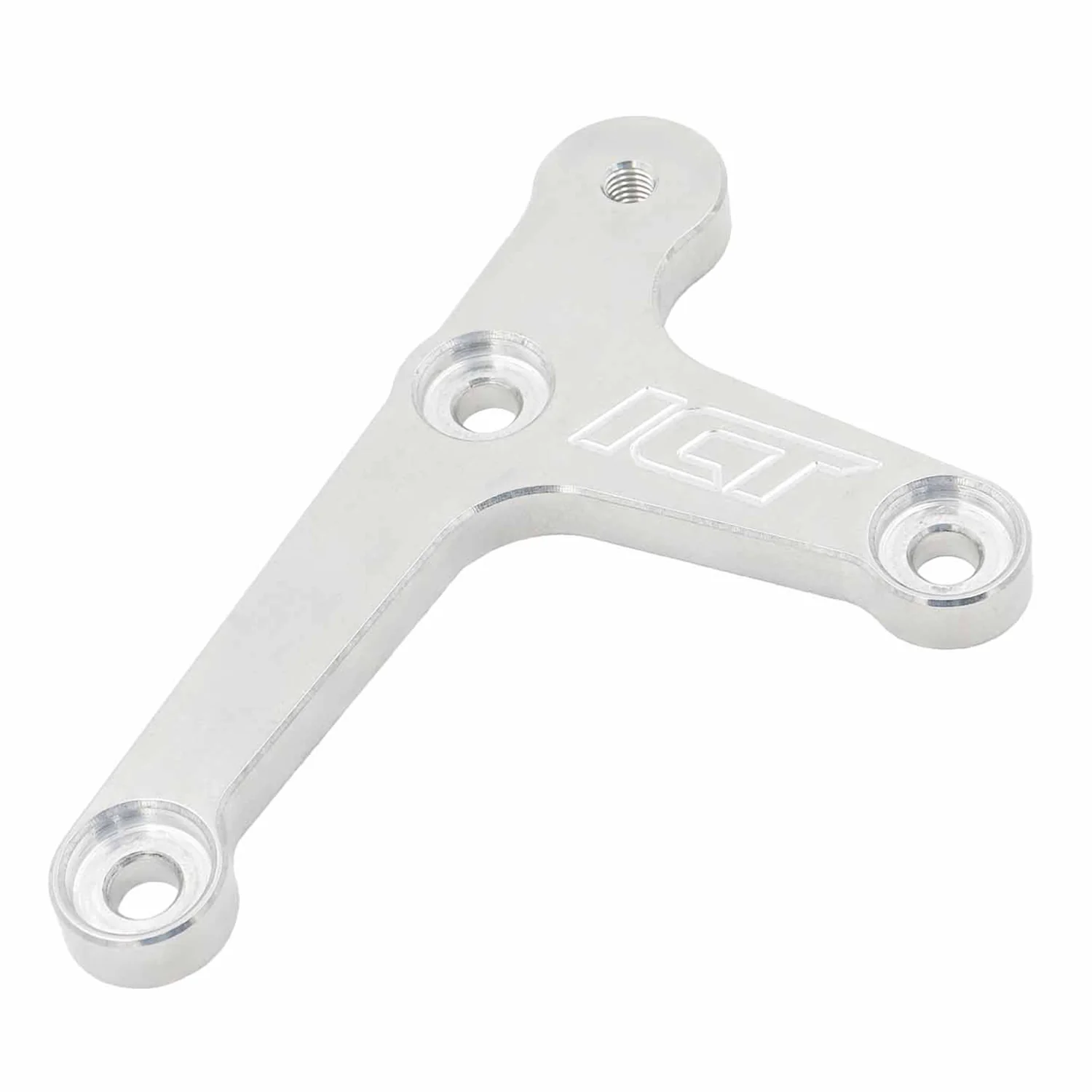

LS Low Mount Alternator Bracket - Corvette Spacing w/ Truck Bolt Pattern Alternator
*if using an iron engine block, it will only have one of the three holes to mount the alternator. To get the minimum two holes, use our drill template, then drill & M10 tap. or use our strongly recommended bracket and template kit to get the third bracket mounting hole.
Product details:
- Compatible with '97-'13 Corvette (LS1, LS2, LS3), '04-'15 CTS-V, '08-'09 G8, '14-'17 SS sedan, harmonic balancer

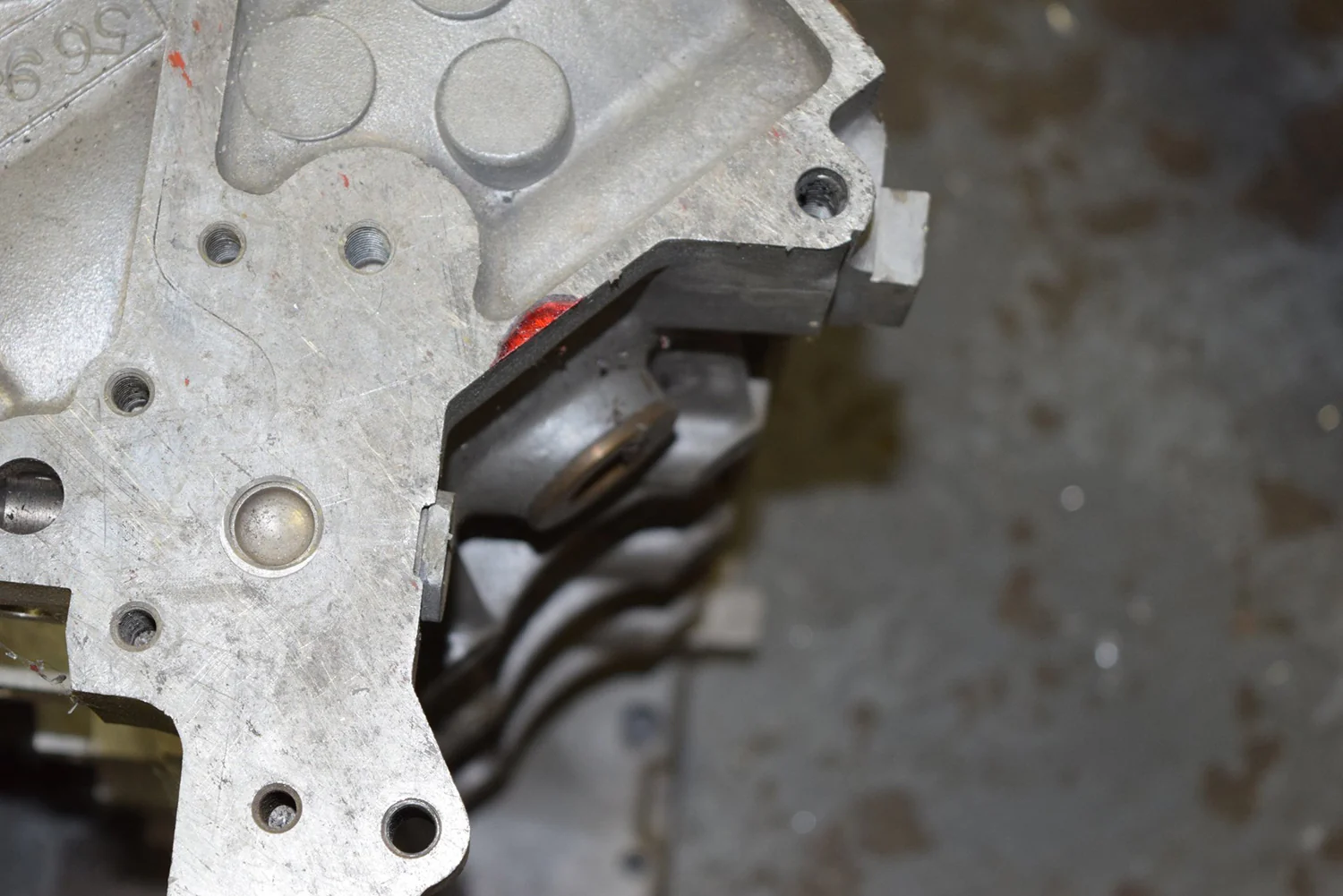

- Compatible with 105/145/160 amp LS truck bolt pattern alternators, factory alternators will require grinding on the block (see photos). For direct fit alternator requiring no block modification, use Mechman small case alternator. Will NOT fit Corvette, CTS-V or 10-15 Camaro alternators.
- Does NOT include smooth pulley or ribbed pulley due to which or if power steering bracket is used with this bracket
- Includes: alternator bracket and mounting hardware
- Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum
Compatible with (based on vehicle 3D scans by ICT)
- BRZ GT86/ZN6/ZC6 2012-20
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS Alternator Bracket - Corvette Spacing (Low Mount)
LS Alternator Bracket - Corvette Spacing (Low Mount)
LS Low Mount Alternator Bracket - Corvette Spacing w/ Truck Bolt Pattern Alternator
*if using an iron engine block, it will only have one of the three holes to mount the alternator. To get the minimum two holes, use our drill template, then drill & M10 tap. or use our strongly recommended bracket and template kit to get the third bracket mounting hole.
Product details:
- Compatible with '97-'13 Corvette (LS1, LS2, LS3), '04-'15 CTS-V, '08-'09 G8, '14-'17 SS sedan, harmonic balancer
- Compatible with 105/145/160 amp LS truck bolt pattern alternators, factory alternators will require grinding on the block (see photos). For direct fit alternator requiring no block modification, use Mechman small case alternator. Will NOT fit Corvette, CTS-V or 10-15 Camaro alternators.
- Does NOT include smooth pulley or ribbed pulley due to which or if power steering bracket is used with this bracket
- Includes: alternator bracket and mounting hardware
- Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum
Compatible with (based on vehicle 3D scans by ICT)
- BRZ GT86/ZN6/ZC6 2012-20
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LS Low Mount Alternator Bracket - Corvette Spacing w/ Truck Bolt Pattern Alternator
*if using an iron engine block, it will only have one of the three holes to mount the alternator. To get the minimum two holes, use our drill template, then drill & M10 tap. or use our strongly recommended bracket and template kit to get the third bracket mounting hole.
Product details:
- Compatible with '97-'13 Corvette (LS1, LS2, LS3), '04-'15 CTS-V, '08-'09 G8, '14-'17 SS sedan, harmonic balancer
- Compatible with 105/145/160 amp LS truck bolt pattern alternators, factory alternators will require grinding on the block (see photos). For direct fit alternator requiring no block modification, use Mechman small case alternator. Will NOT fit Corvette, CTS-V or 10-15 Camaro alternators.
- Does NOT include smooth pulley or ribbed pulley due to which or if power steering bracket is used with this bracket
- Includes: alternator bracket and mounting hardware
- Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum
Compatible with (based on vehicle 3D scans by ICT)
- BRZ GT86/ZN6/ZC6 2012-20
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
