LS Alternator & Power Steering Bracket - Corvette Spacing

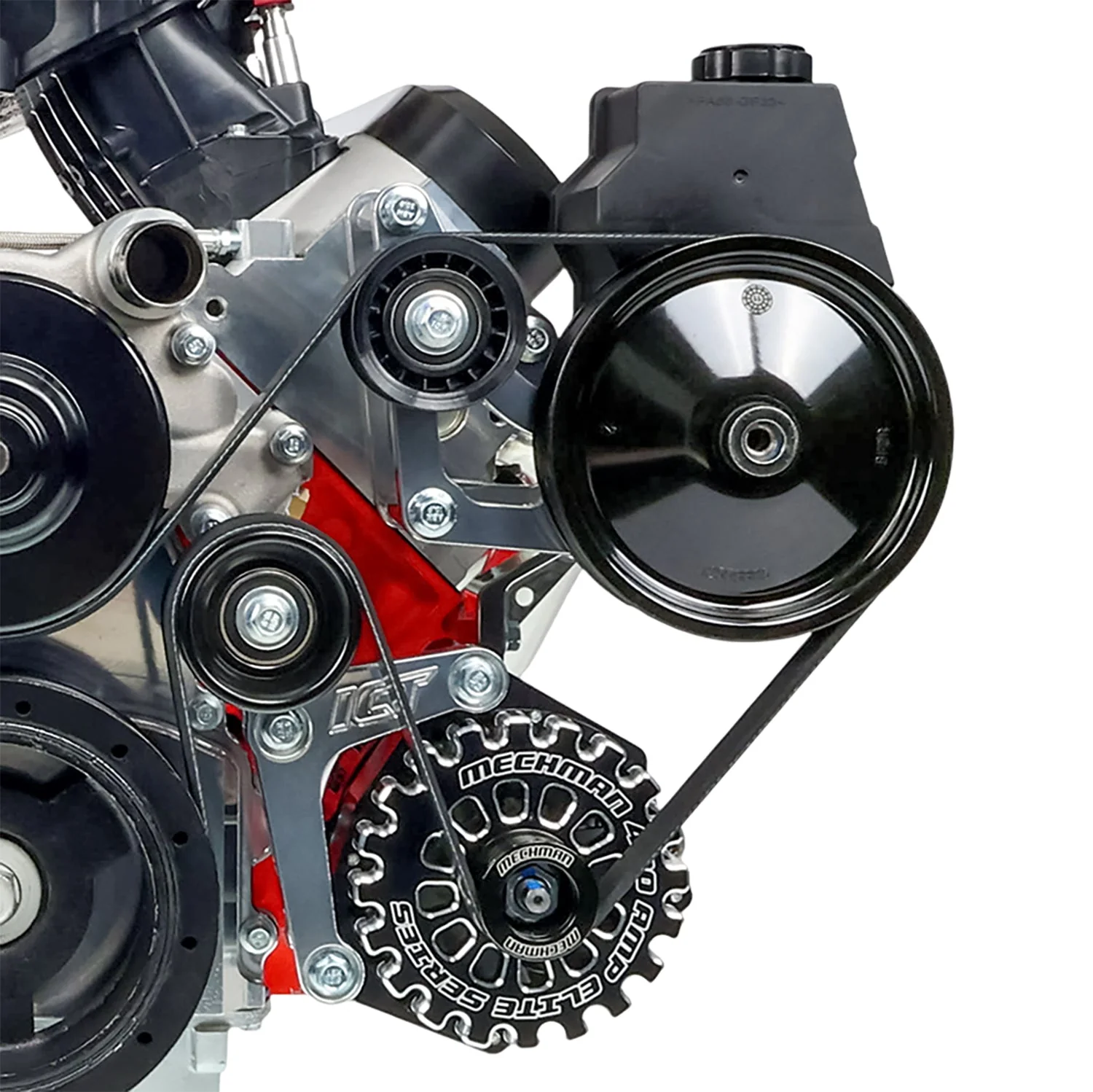

LS Truck Alternator & LS1 Camaro Power Steering Bracket Kit for Corvette Spacing
*if using an iron engine block, it will only have one of the three holes to mount the alternator. To get the minimum two holes, use our drill template, then drill & M10 tap. or use our strongly recommended bracket and template kit to get the third bracket mounting hole.
Product details:
- Compatible with105/145/160 amp LS alternators, factory alternators will require grinding on the block (see photos). For direct fit alternator requiring not block modification, use Mechman small case alternator. Will NOT fit Corvette, CTS-V or 10-15 Camaro alternators.
- Compatible with '97-'13 Corvette (LS1, LS2, LS3), '04-'15 CTS-V, '08-'09 G8, '14-'17 SS sedan, harmonic balancer
- Compatible with 1998-02 LS1 Camaro power steering pump and pulley (or billet 2pc pulley)
- Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

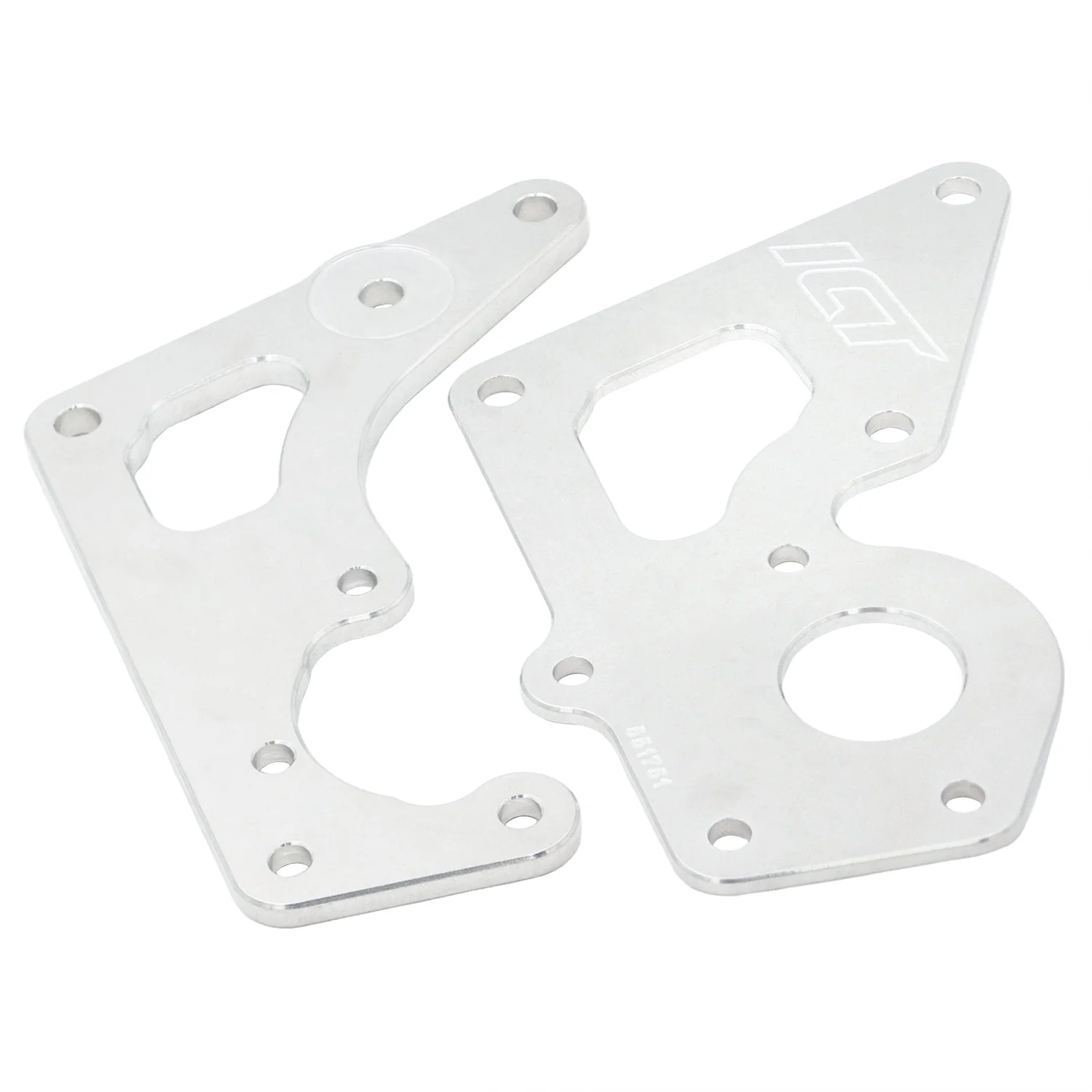

- Includes: alternator bracket, power steering bracket, idler pulley, and mounting hardware
Helpful Links & Guides
- Belt length chart
- Replacement smooth pulley
- Billet smooth pulley
- Replacement bolt and spacer kit for alternator or power steering bracket
- Instructions
