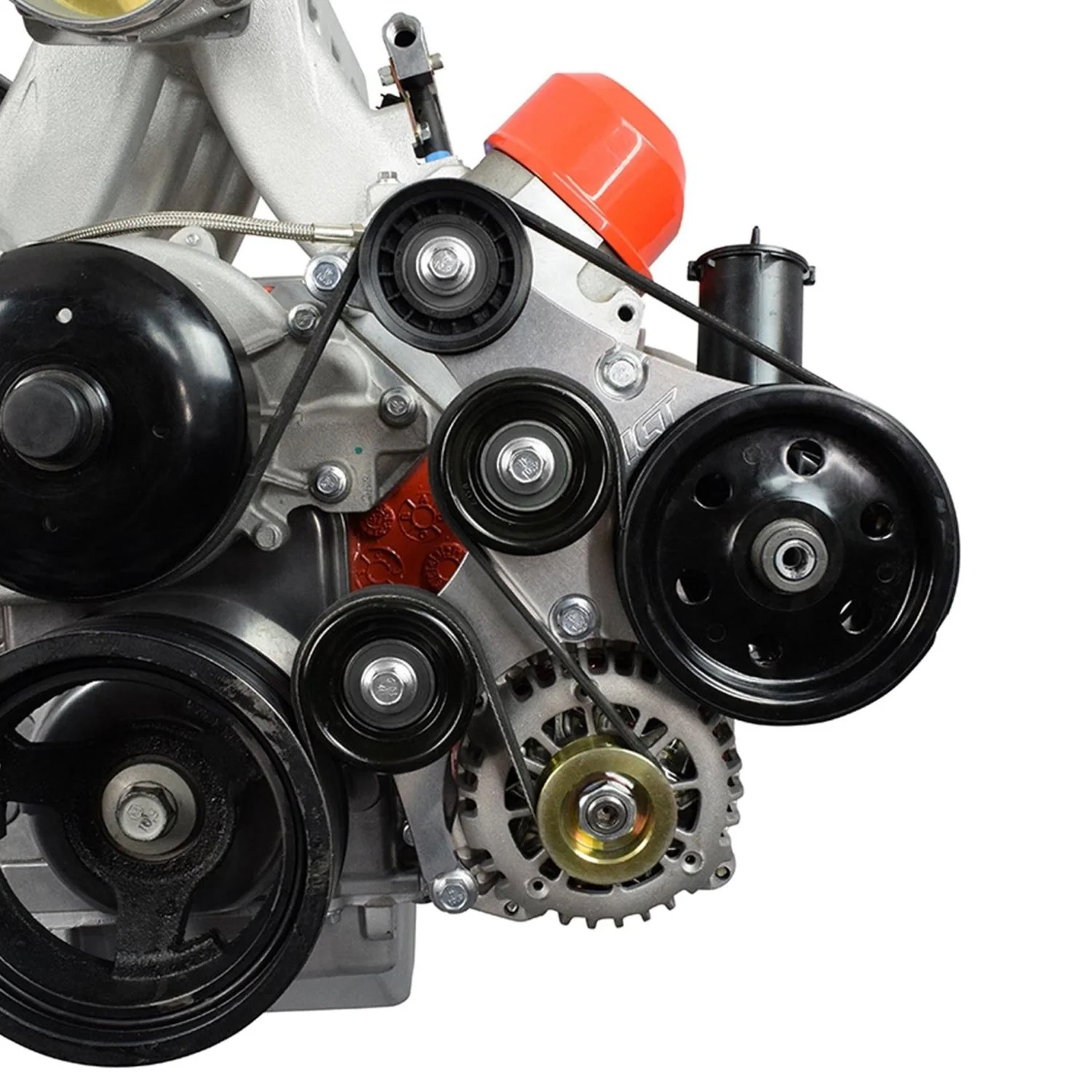

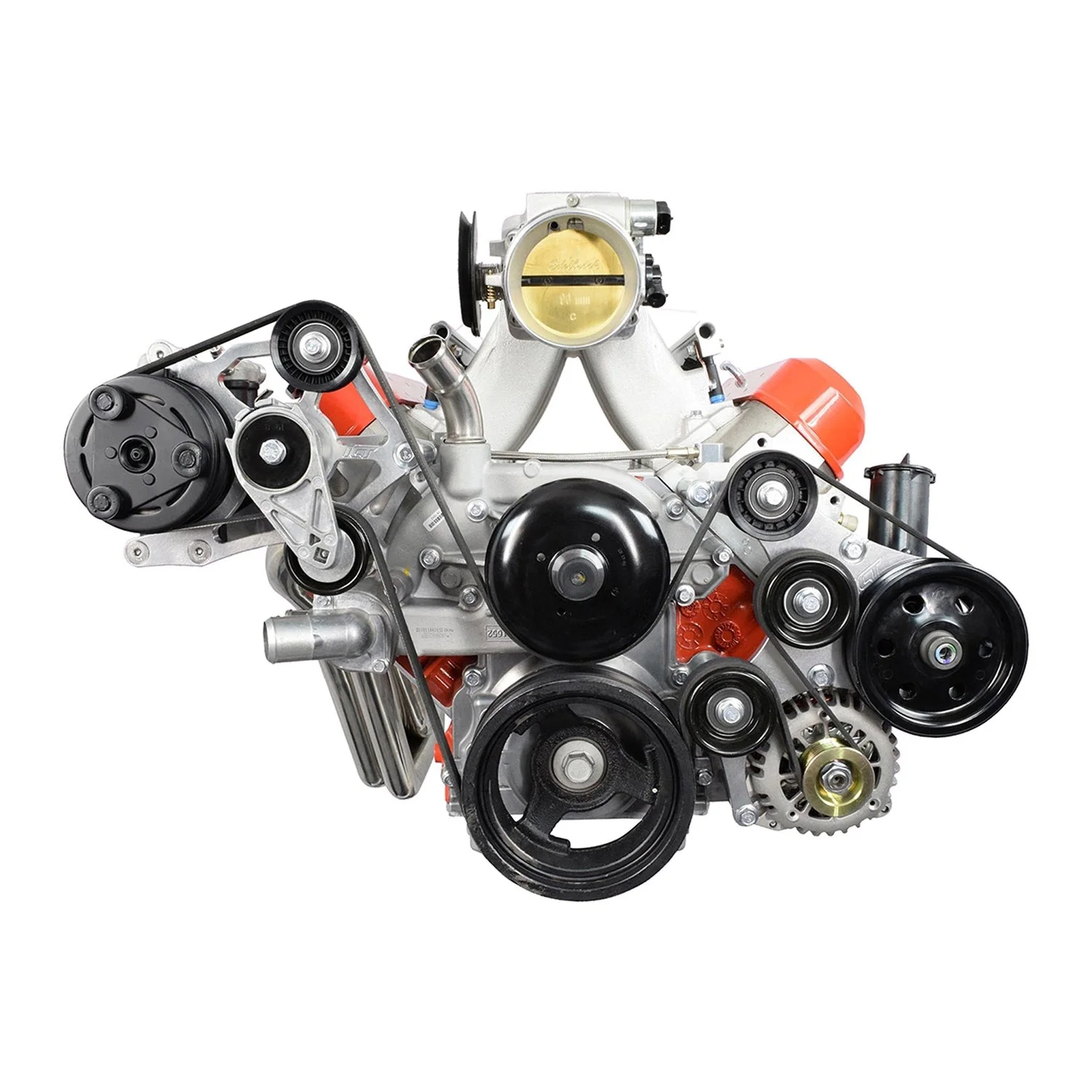

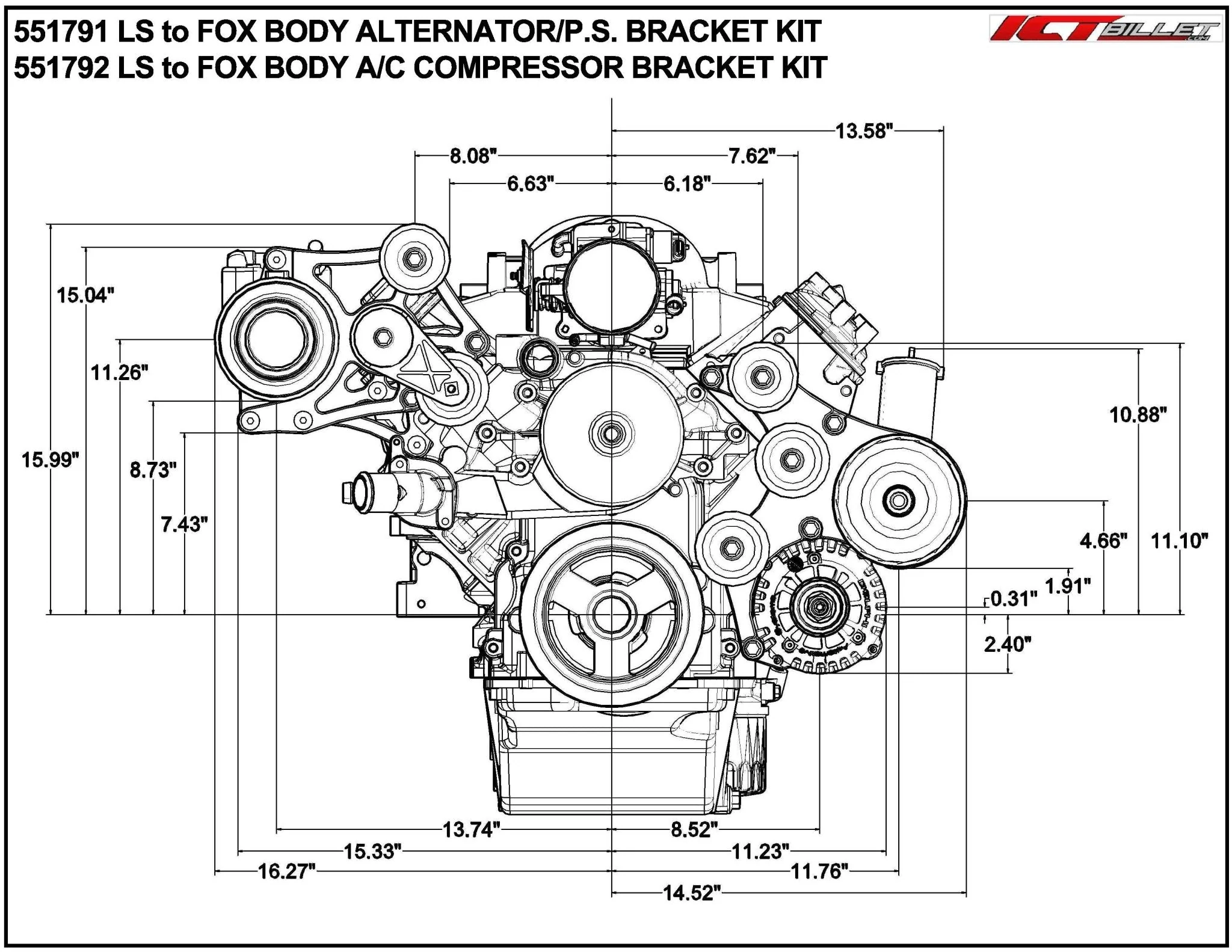

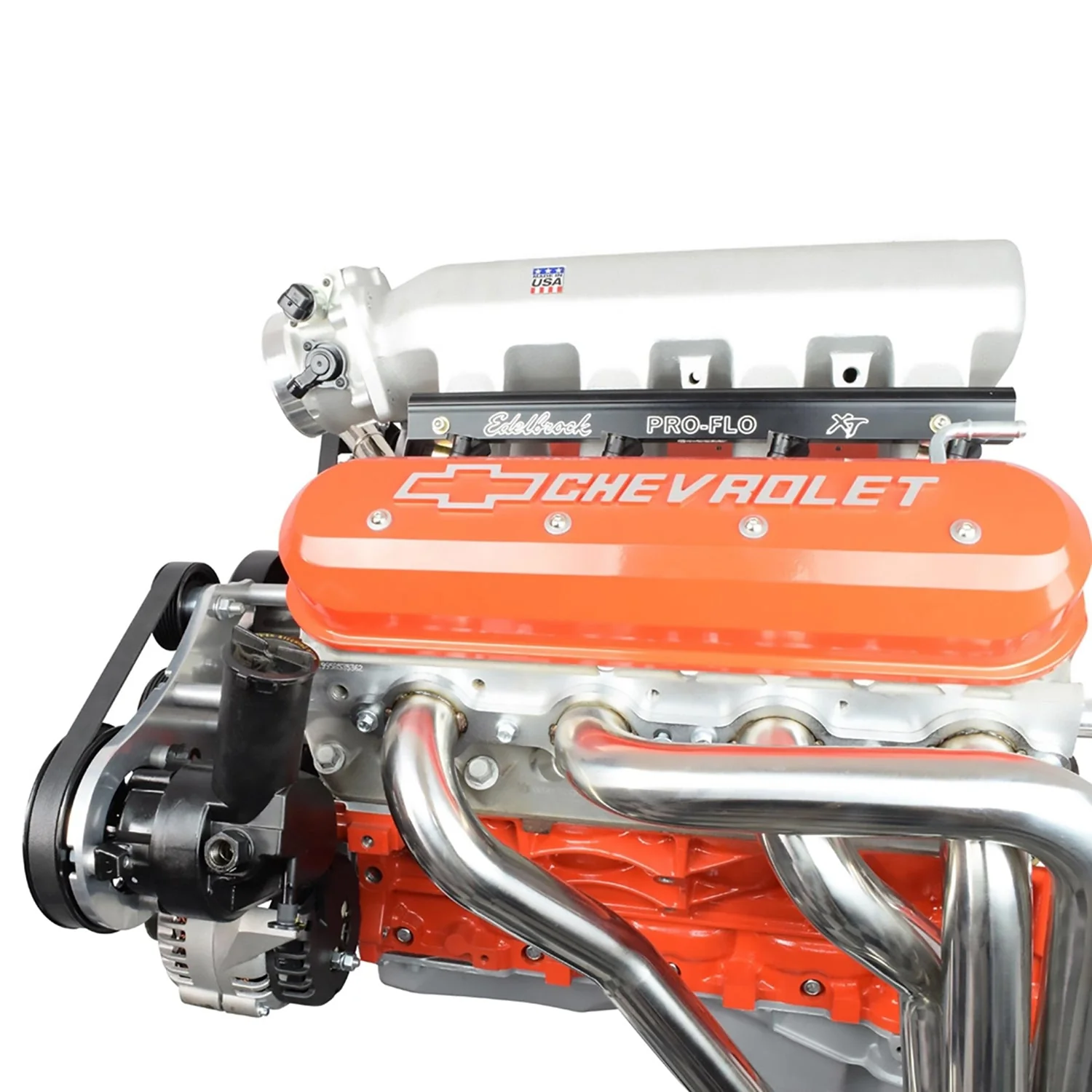

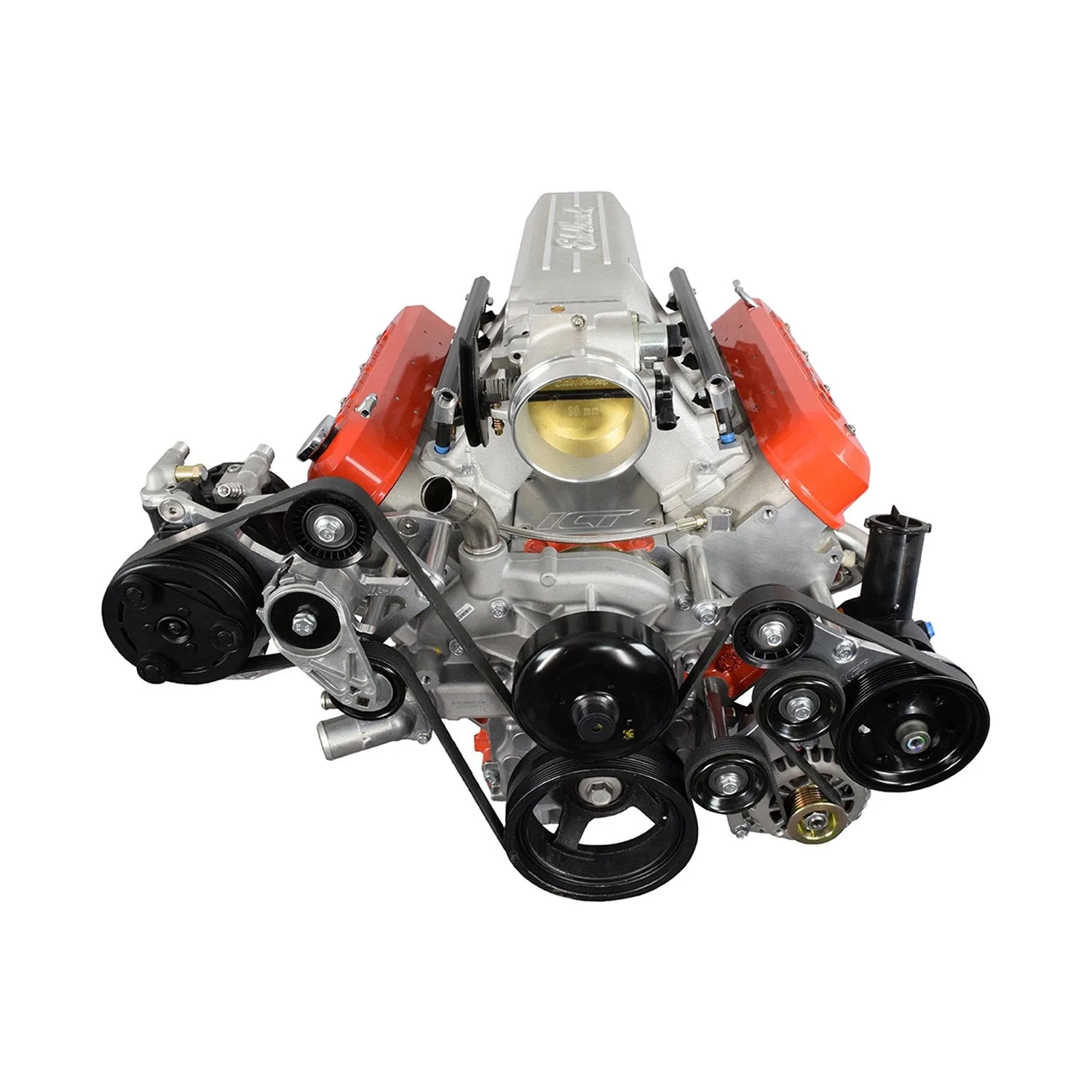

LS to Fox Body Power Steering Alternator Bracket Kit

*if using an iron engine block, it will only have one of the three holes to mount the alternator.  To get the minimum two holes, use our drill template, then drill & M10 tap.  or use our strongly recommended bracket and template kit to get the third bracket mounting hole.

This kit is designed specifically for an LS swapped Fox Body Mustang (1979-1993) (Third Generation)

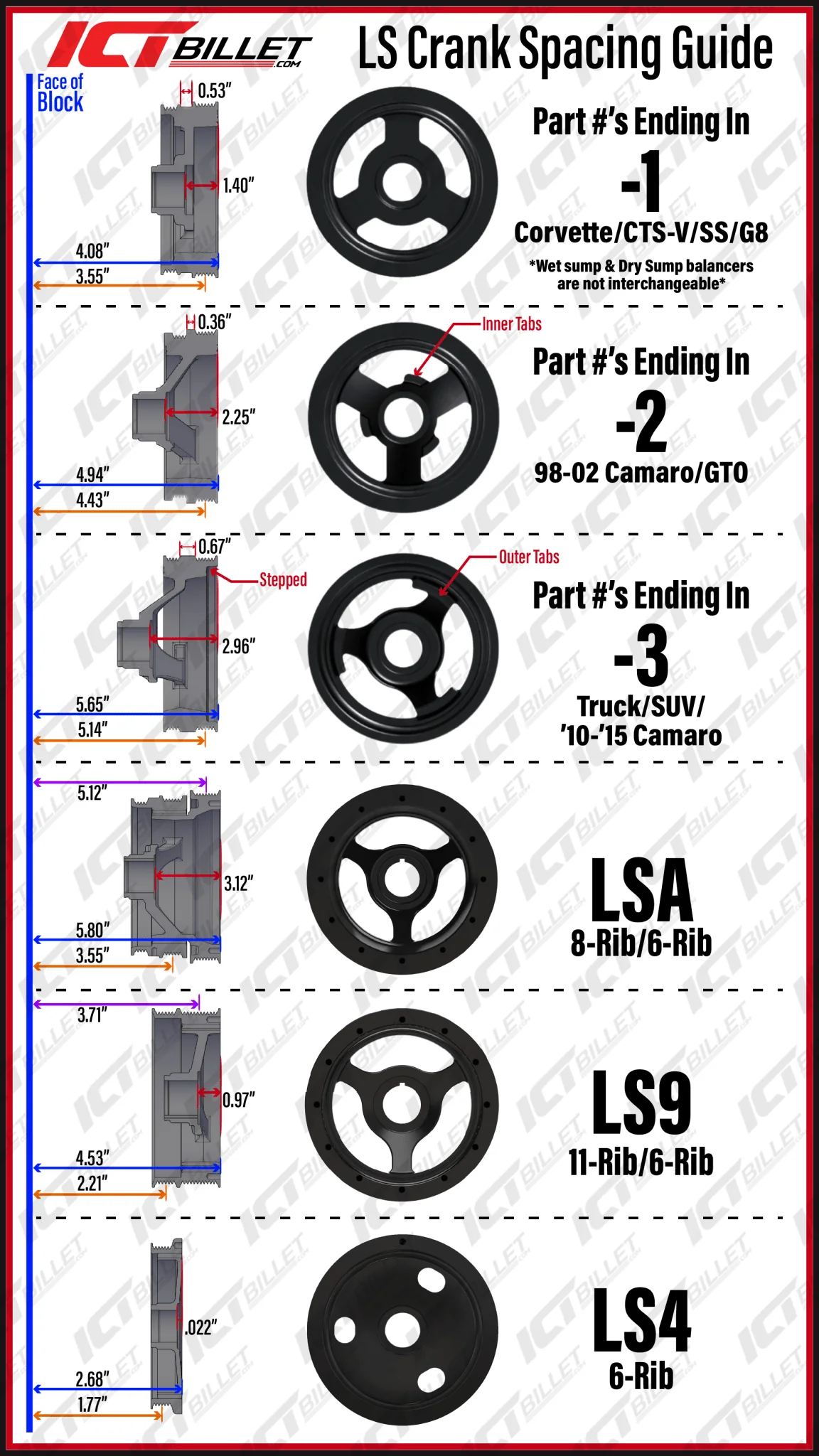

• This kit uses the LS Truck (or LS3/L99 Camaro) harmonic balancer

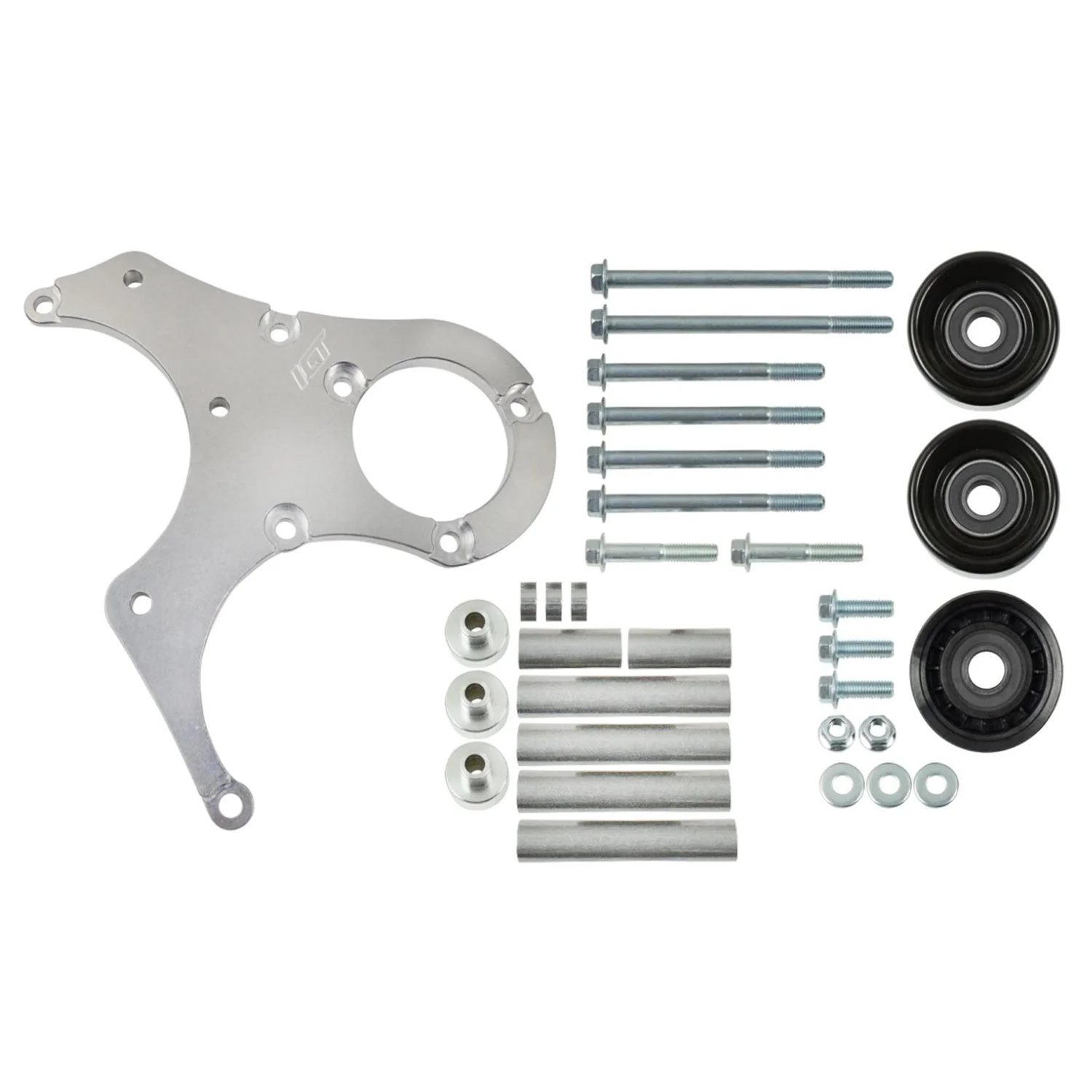

• Includes: bracket, idler pulleys, and mounting hardware
• Compatible with a 1990-2004 Ford Mustang factory power steering pump and pulley. (F1ZZ3A674BBRM & D9ZC3D673A3A)
• Compatible with all LS alternators (Except Corvette, CTS-V or 10-15 Camaro)
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

Helpful Links & Guides

• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley

• Replacement bolt and spacer kit
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Instructions
