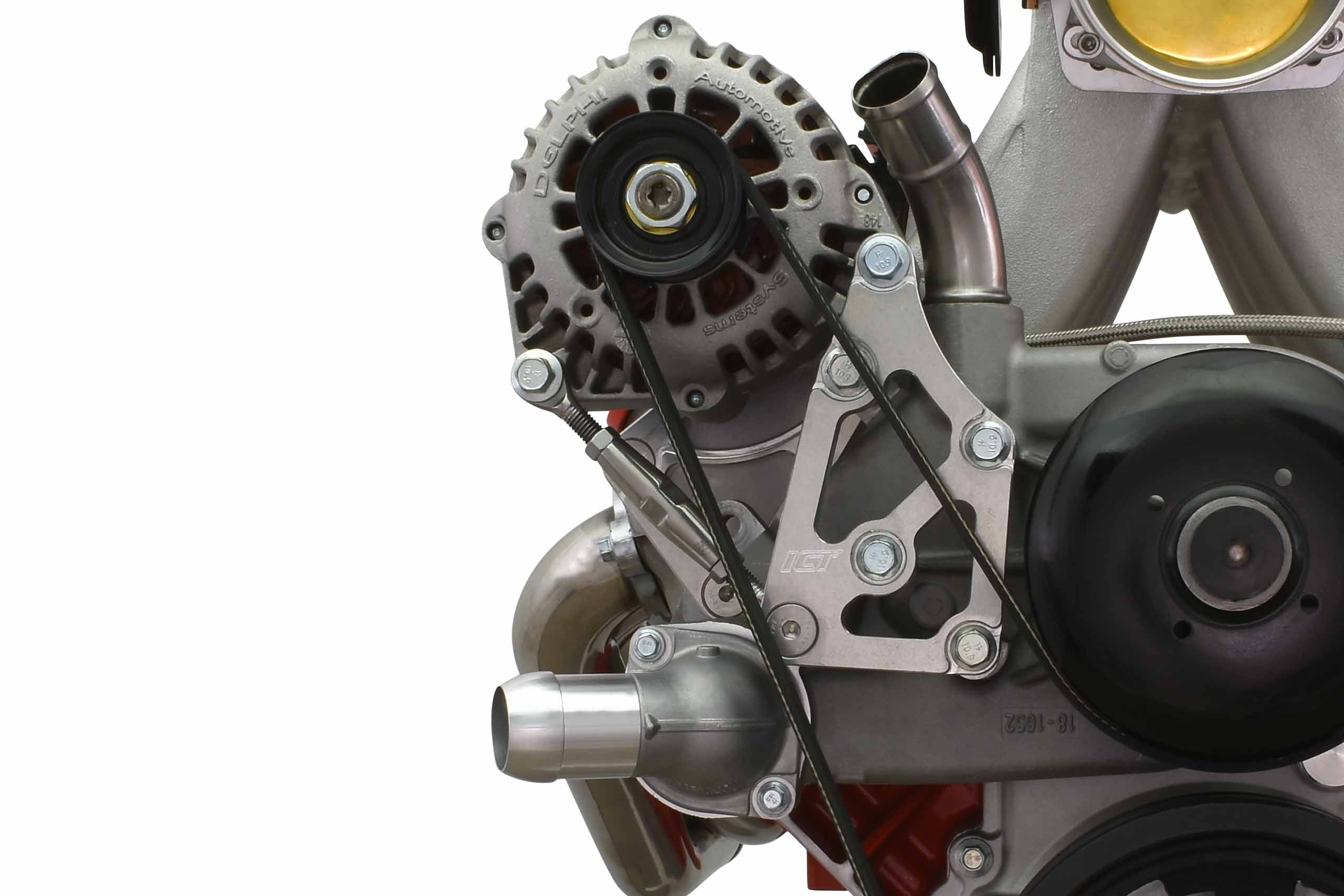

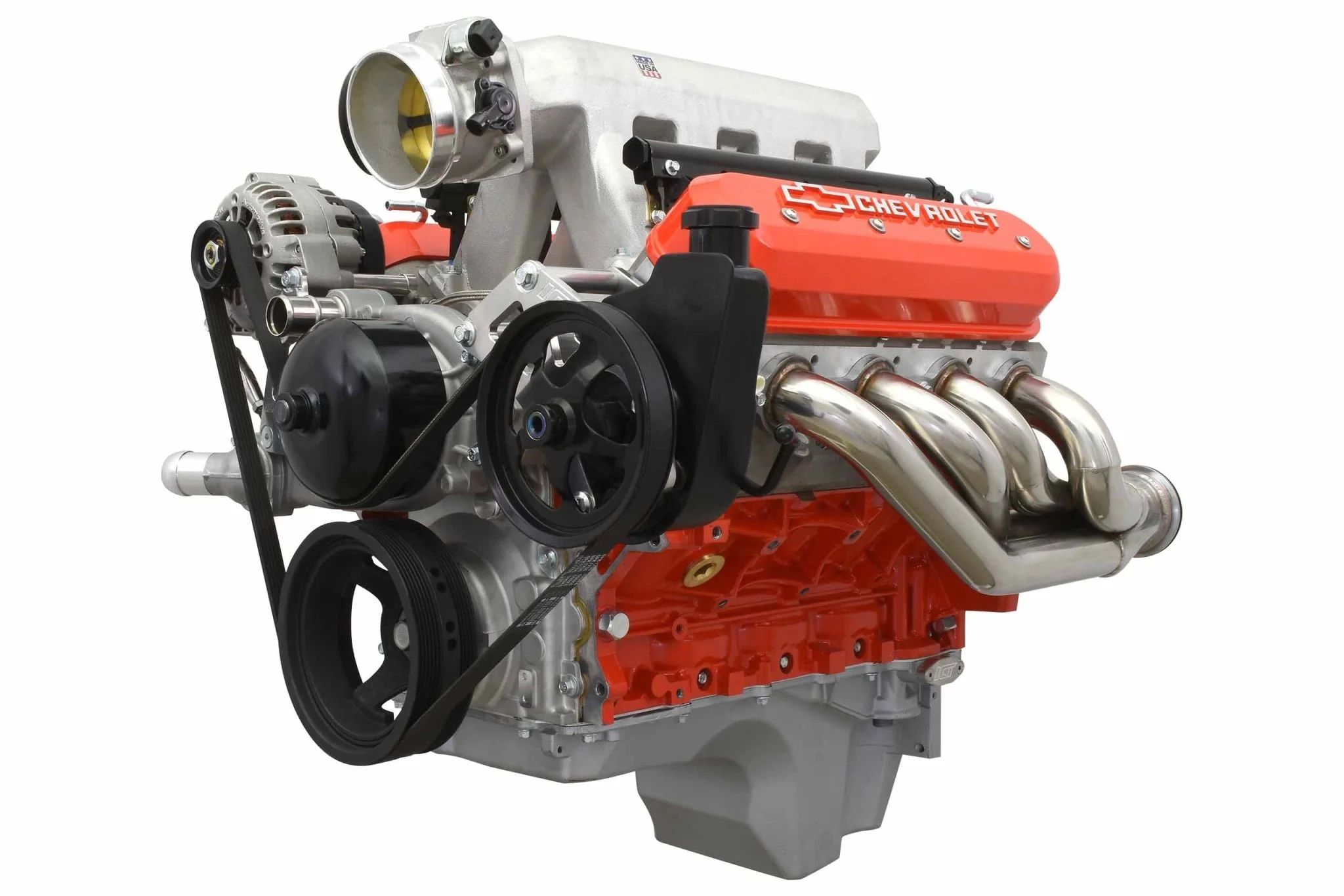

LS Truck Alternator Relocation Heavy Duty Bracket Kit with Turnbuckle Tensioner

Product details:

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancers.

• Compatible with 105 amp case alternator will NOT fit large case or Corvette/CTSV 2010-15 Camaro bolt pattern alternators.
• Compatible with Gen 3 truck water pump (truck pump must use GM/AC Delco for proper fitment)  or LS3/L99 water pump or recommended LS1 Camaro / Corvette water pump with spacers  (Some water pump trimming may be required due to missing bolt hole in LS1 water pumps.)
• Gen 4 "truck" pump will NOT fit due to 10 o'clock upper hose exit position
• Includes: alternator bracket with turnbuckle belt tensioner, and mounting hardware

• Can be used with factory low mount A/C compressor on passenger side
• Compatible with LS3 throttle body rotation adapter when using with LS3 Camaro intake manifold and throttle body
• NOT compatible with ICT #551675 coolant crossover kit with steam vent port

• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet S10 Truck 94-04

Helpful Links & Guides

• Belt length chart
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Replacement bolt & spacer kit
• Replacement tensioner

• Instructions
