LS Truck - Sanden 508 A/C Air Conditioner Compressor Bracket Kit LS1 LS3 LSX AC
Heavy Duty LS Sanden 508 A/C Compressor Bracket Kit
- Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
- Compatible with Sanden 508 or Sanden 709 A/C compressors

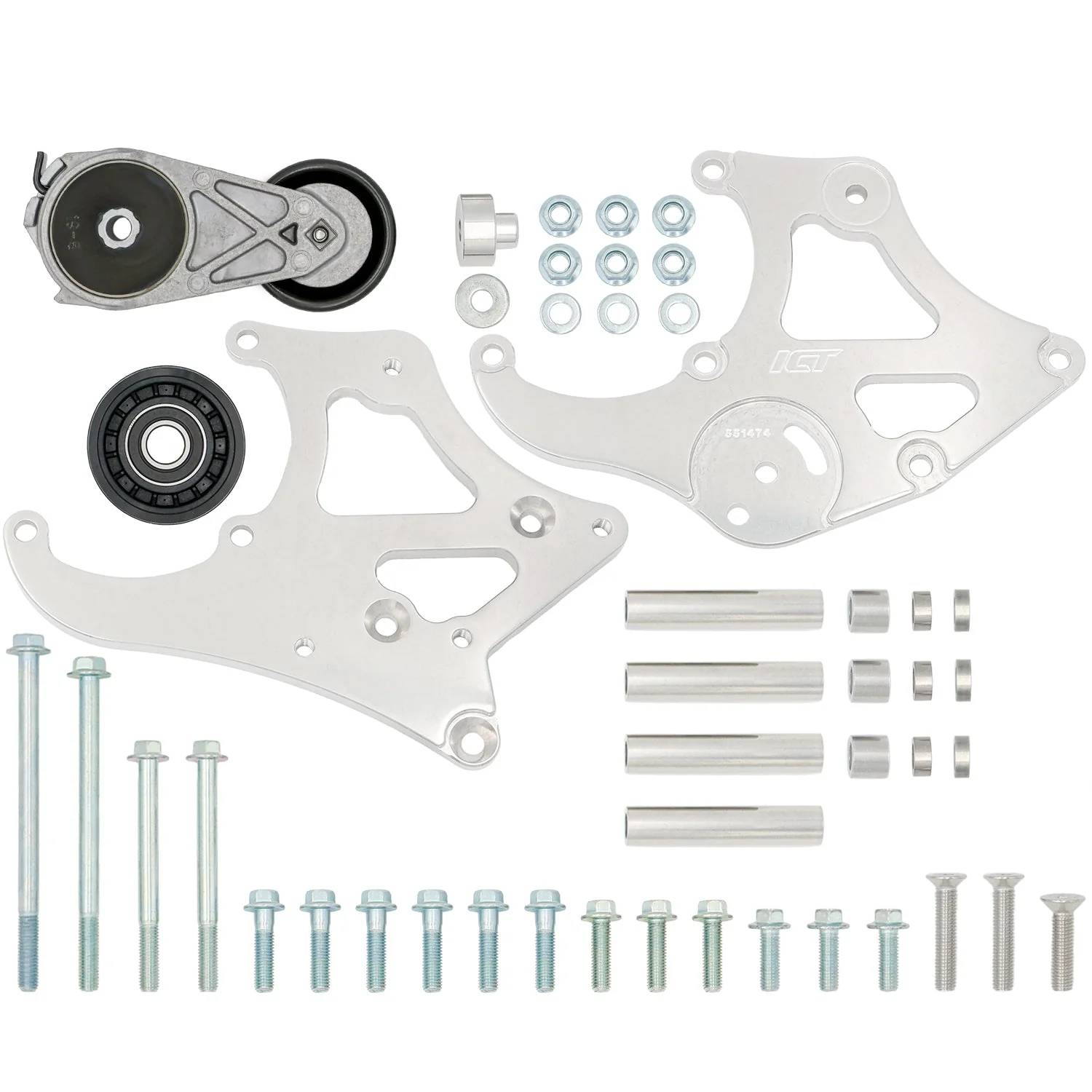

- Includes: belt tensioner, A/C compressor bracket, idler pulley, and mounting hardware
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Compatible with all GM LS series engines and works with any water pump (Corvette/Camaro water pumps require spacers)
Compatible with (based on vehicle 3D scans by ICT)
- Chevrolet Bel Air 55-57
- Chevrolet Camaro 67-69
- Chevrolet Chevelle 64-72
- Chevrolet Impala 65-70
- Chevrolet Trucks 60-72
Compatible with 1130K6 belt (113 inch) with OEM truck alternator/power steering bracket. If the idler pulley on A/C bracket is removed for clearance, then use 1098K6 belt. *This bracket does NOT fit or use the factory LS vehicle a/c compressors Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part#
Belt lengths when used with:
- 551519 988K6 with 105amp alt
- 551577 940K6 with 105amp alt
- 551668 755K6 with 105amp alt
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LS Truck - Sanden 508 A/C Air Conditioner Compressor Bracket Kit LS1 LS3 LSX AC
LS Truck - Sanden 508 A/C Air Conditioner Compressor Bracket Kit LS1 LS3 LSX AC
Heavy Duty LS Sanden 508 A/C Compressor Bracket Kit
- Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
- Compatible with Sanden 508 or Sanden 709 A/C compressors
- Includes: belt tensioner, A/C compressor bracket, idler pulley, and mounting hardware
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Compatible with all GM LS series engines and works with any water pump (Corvette/Camaro water pumps require spacers)
Compatible with (based on vehicle 3D scans by ICT)
- Chevrolet Bel Air 55-57
- Chevrolet Camaro 67-69
- Chevrolet Chevelle 64-72
- Chevrolet Impala 65-70
- Chevrolet Trucks 60-72
Compatible with 1130K6 belt (113 inch) with OEM truck alternator/power steering bracket. If the idler pulley on A/C bracket is removed for clearance, then use 1098K6 belt. *This bracket does NOT fit or use the factory LS vehicle a/c compressors Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part#
Belt lengths when used with:
- 551519 988K6 with 105amp alt
- 551577 940K6 with 105amp alt
- 551668 755K6 with 105amp alt
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Heavy Duty LS Sanden 508 A/C Compressor Bracket Kit
- Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
- Compatible with Sanden 508 or Sanden 709 A/C compressors
- Includes: belt tensioner, A/C compressor bracket, idler pulley, and mounting hardware
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Compatible with all GM LS series engines and works with any water pump (Corvette/Camaro water pumps require spacers)
Compatible with (based on vehicle 3D scans by ICT)
- Chevrolet Bel Air 55-57
- Chevrolet Camaro 67-69
- Chevrolet Chevelle 64-72
- Chevrolet Impala 65-70
- Chevrolet Trucks 60-72
Compatible with 1130K6 belt (113 inch) with OEM truck alternator/power steering bracket. If the idler pulley on A/C bracket is removed for clearance, then use 1098K6 belt. *This bracket does NOT fit or use the factory LS vehicle a/c compressors Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part#
Belt lengths when used with:
- 551519 988K6 with 105amp alt
- 551577 940K6 with 105amp alt
- 551668 755K6 with 105amp alt
Helpful Links & Guides
- Belt length chart
- Replacement bolt and spacer kit
- Instructions
