LT Non Superchrgered Heads to LT4 Port Injection Add On Plates

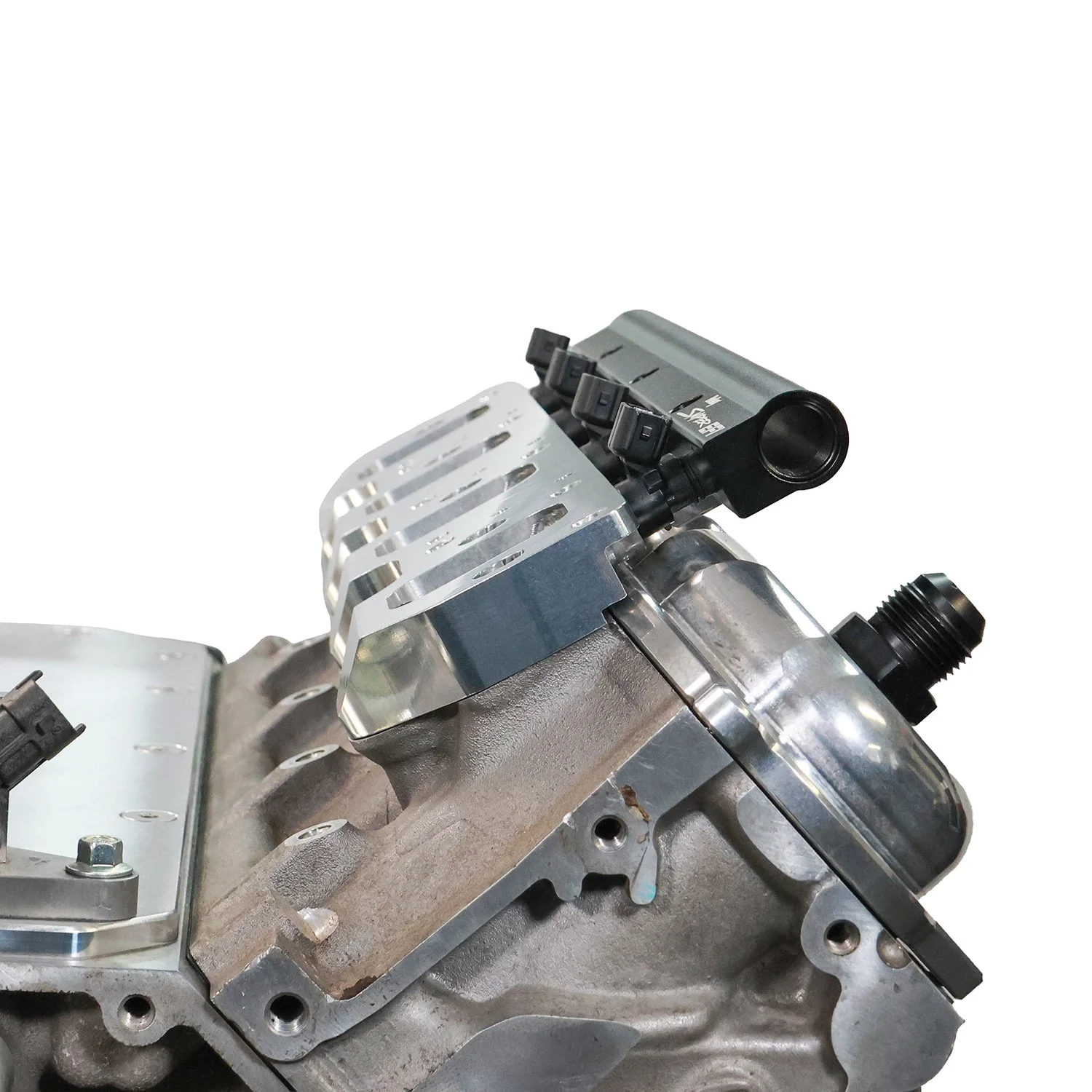

LT1 head to LT4 Supercharger Gen V - Port Fuel Injection Add On Sandwich Plates
Compatible with 5.3L and 6.2L LT Gen V cylinder heads (the 6.2L has .070 lower floor (aka bigger port) than 5.3L). These are designed to bolt to LT1 style heads and allows you to bolt on an LT4 supercharger to these adapters. These plates are recommended any time more fuel is needed for your direct injected engine. These plates allow greater choices of injector sizes, fuel pump, and also allows for race fuel to be used to lower temps.
- For use with LS3 length fuel injectors
- Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails)
- Includes: Injection plates, fuel rails, rail brackets, and mounting hardware

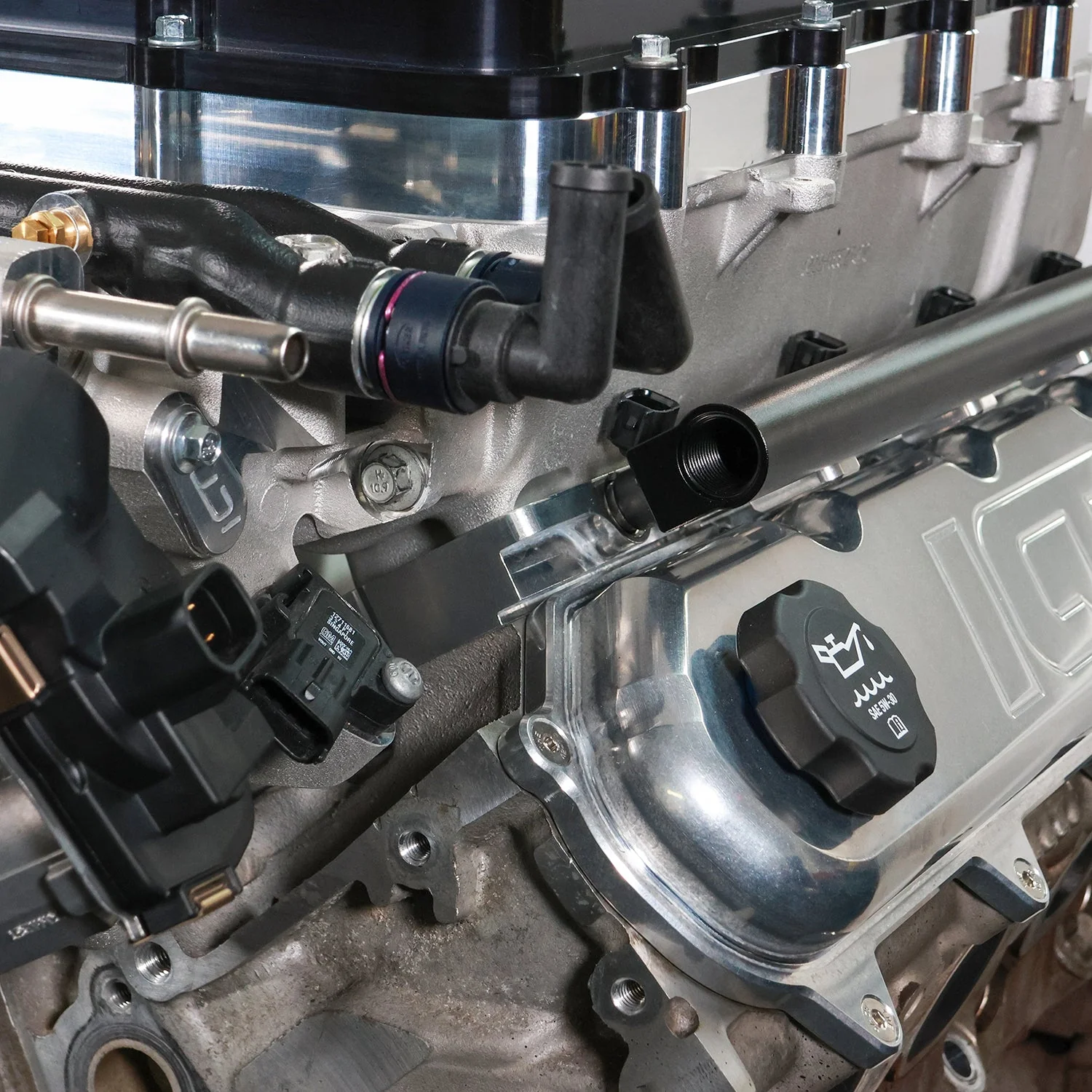

* Requires modification of factory valve covers to remove coil mounting towers or aftermarket valve covers to provide clearance for port injection add on plates.

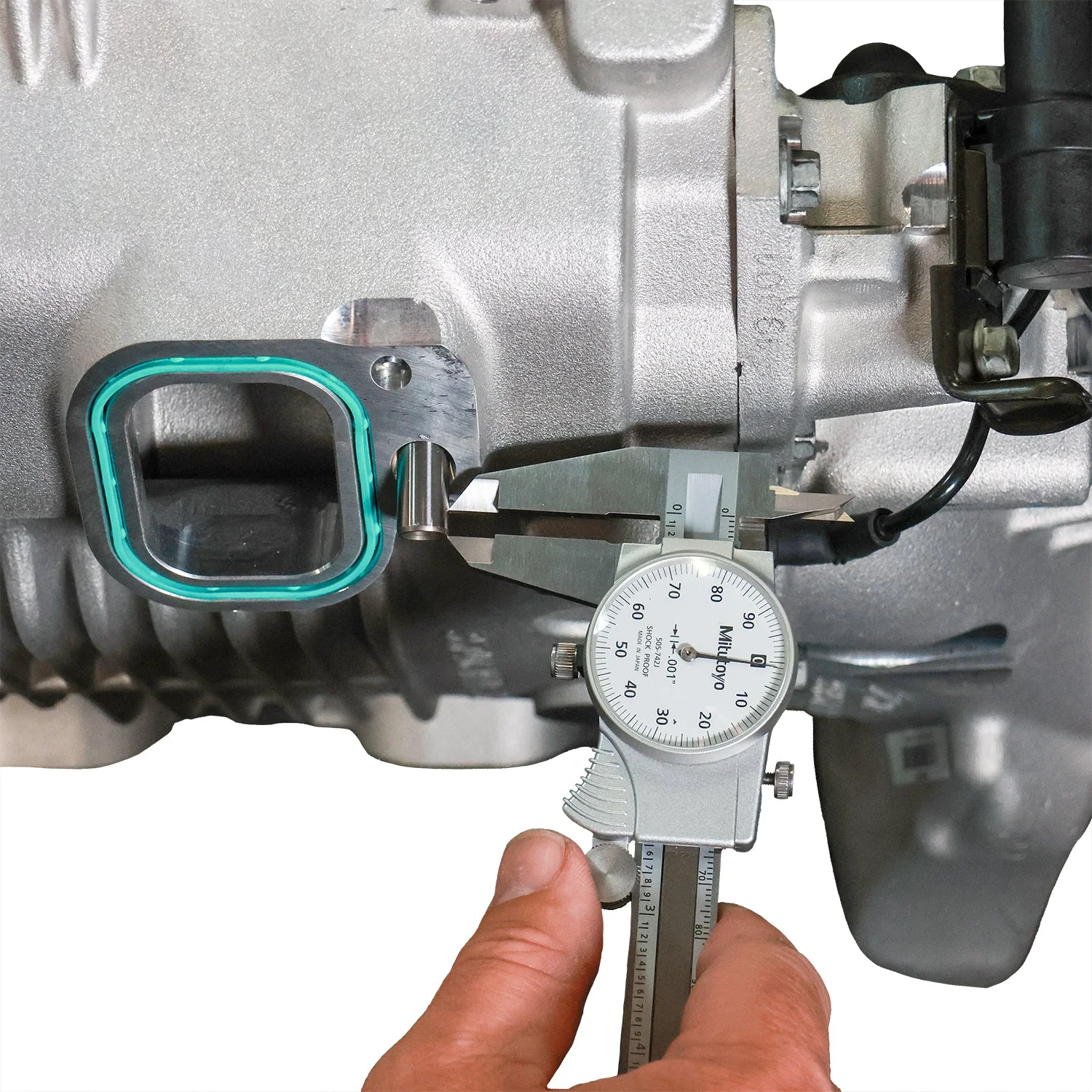

- LT4 supercharger to cylinder head dowels need to be cut .2" shorter before installation
Helpful Links
- Replacement -228 oring
Product Information
Product Information
Shipping & Returns
Shipping & Returns
LT Non Superchrgered Heads to LT4 Port Injection Add On Plates
LT Non Superchrgered Heads to LT4 Port Injection Add On Plates
LT1 head to LT4 Supercharger Gen V - Port Fuel Injection Add On Sandwich Plates
Compatible with 5.3L and 6.2L LT Gen V cylinder heads (the 6.2L has .070 lower floor (aka bigger port) than 5.3L). These are designed to bolt to LT1 style heads and allows you to bolt on an LT4 supercharger to these adapters. These plates are recommended any time more fuel is needed for your direct injected engine. These plates allow greater choices of injector sizes, fuel pump, and also allows for race fuel to be used to lower temps.
- For use with LS3 length fuel injectors
- Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails)
- Includes: Injection plates, fuel rails, rail brackets, and mounting hardware
* Requires modification of factory valve covers to remove coil mounting towers or aftermarket valve covers to provide clearance for port injection add on plates.
- LT4 supercharger to cylinder head dowels need to be cut .2" shorter before installation
Helpful Links
- Replacement -228 oring
$210.00
Original: $600.00
-65%LT Non Superchrgered Heads to LT4 Port Injection Add On Plates—
$600.00
$210.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LT1 head to LT4 Supercharger Gen V - Port Fuel Injection Add On Sandwich Plates
Compatible with 5.3L and 6.2L LT Gen V cylinder heads (the 6.2L has .070 lower floor (aka bigger port) than 5.3L). These are designed to bolt to LT1 style heads and allows you to bolt on an LT4 supercharger to these adapters. These plates are recommended any time more fuel is needed for your direct injected engine. These plates allow greater choices of injector sizes, fuel pump, and also allows for race fuel to be used to lower temps.
- For use with LS3 length fuel injectors
- Aluminum parts are all made in Wichita, Kansas from 6061-T6, USA produced, billet (except Holley fuel rails)
- Includes: Injection plates, fuel rails, rail brackets, and mounting hardware
* Requires modification of factory valve covers to remove coil mounting towers or aftermarket valve covers to provide clearance for port injection add on plates.
- LT4 supercharger to cylinder head dowels need to be cut .2" shorter before installation
Helpful Links
- Replacement -228 oring
