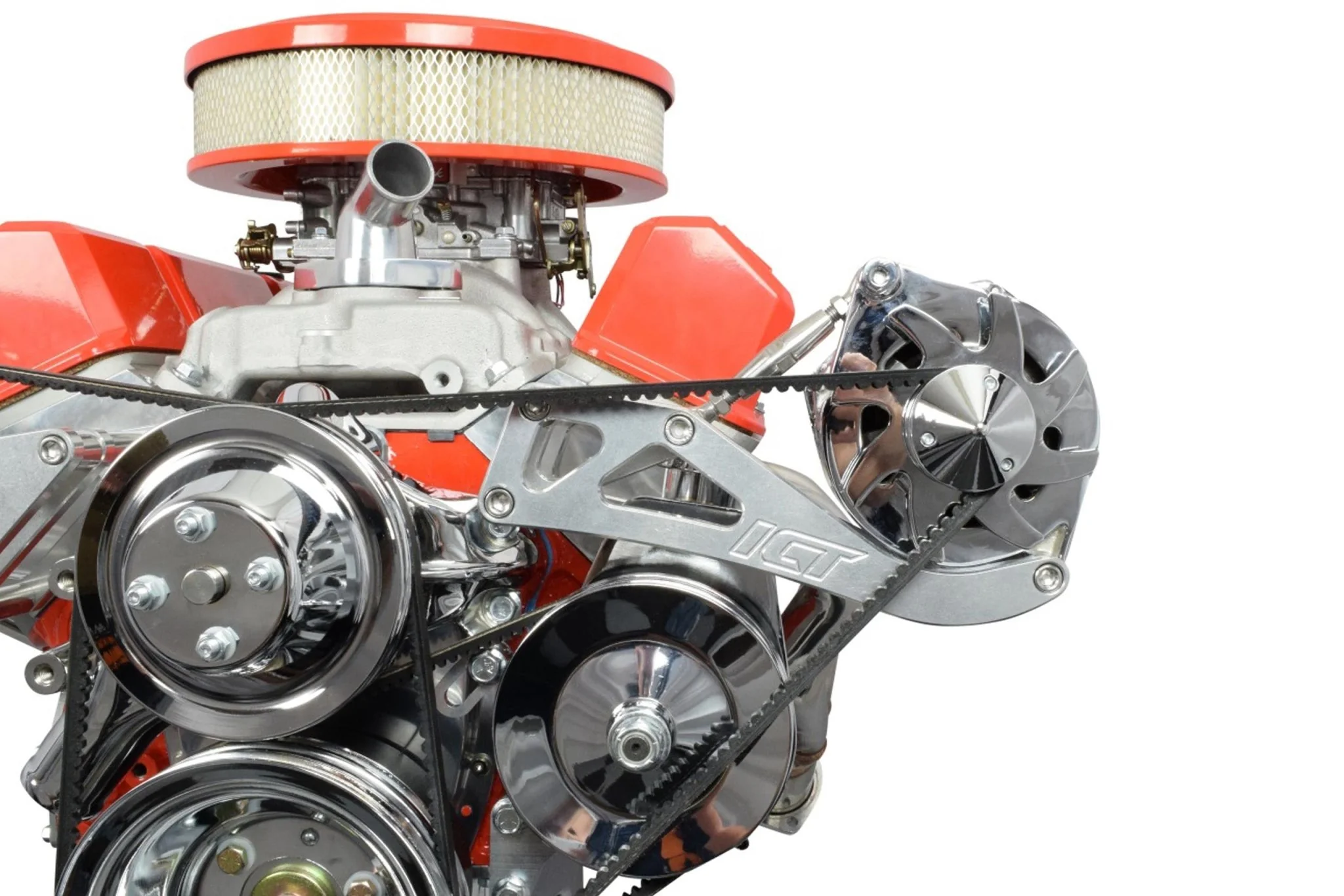

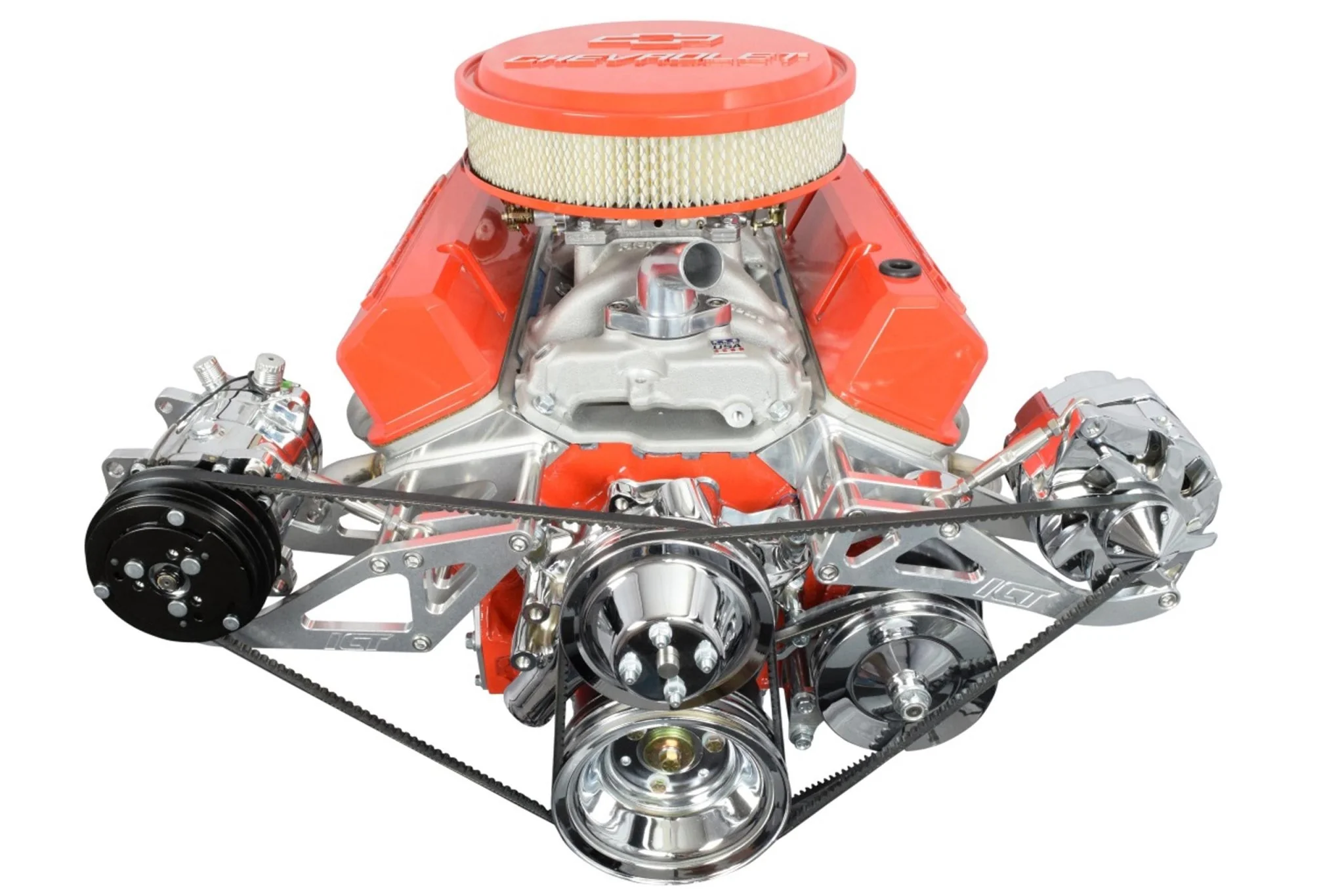

Long Water Pump LWP ONLY - 350 SBC Air Conditioning, Alternator & Power Steering Pump Accessory Bracket Kit

Made in Wichita, Kansas from 6061-T6 USA produced, billet aluminum

• These brackets attached to 3 bolt heads and water pump (no double hump)
• Compatible with Sanden 508 V-belt Pulley A/C Compressor
• Does NOT include pulleys
• Includes: alternator and PS pump brackets, instructions, and mounting hardware
• This kit will work with 3-rib V-belt pulley

Power Steering Pump (OE style or Lares 2134)

Bracket is only compatible with the power steering pump style shown in picture 3 with rear stud at bottom of the reservoir.

Pulleys (or similar OE style, V-Rib ONLY)

• Crank pulley 3-groove SUM-G3958
• Water pump #43099 Gates and pulley 2-groove SUM-G3955
• Power steering pulley 1-groove w/ 5/8" keyway SUM-340131
• Power steering pulley 1-groove w/ .747" press-on TFF-8485A
• Power steering pulley 2-groove w/ .747" press-on TFF-8486A

Belt Length

• alternator uses 54" V-belt - Gates 7541 (with factory diameter pulleys)
• Air conditioning 57" V-belt  - Gates 7570
• Power steering uses 37" V-belt - Gates 7370

*uses 12si style alternators (6.56" center to center bolt holes)
