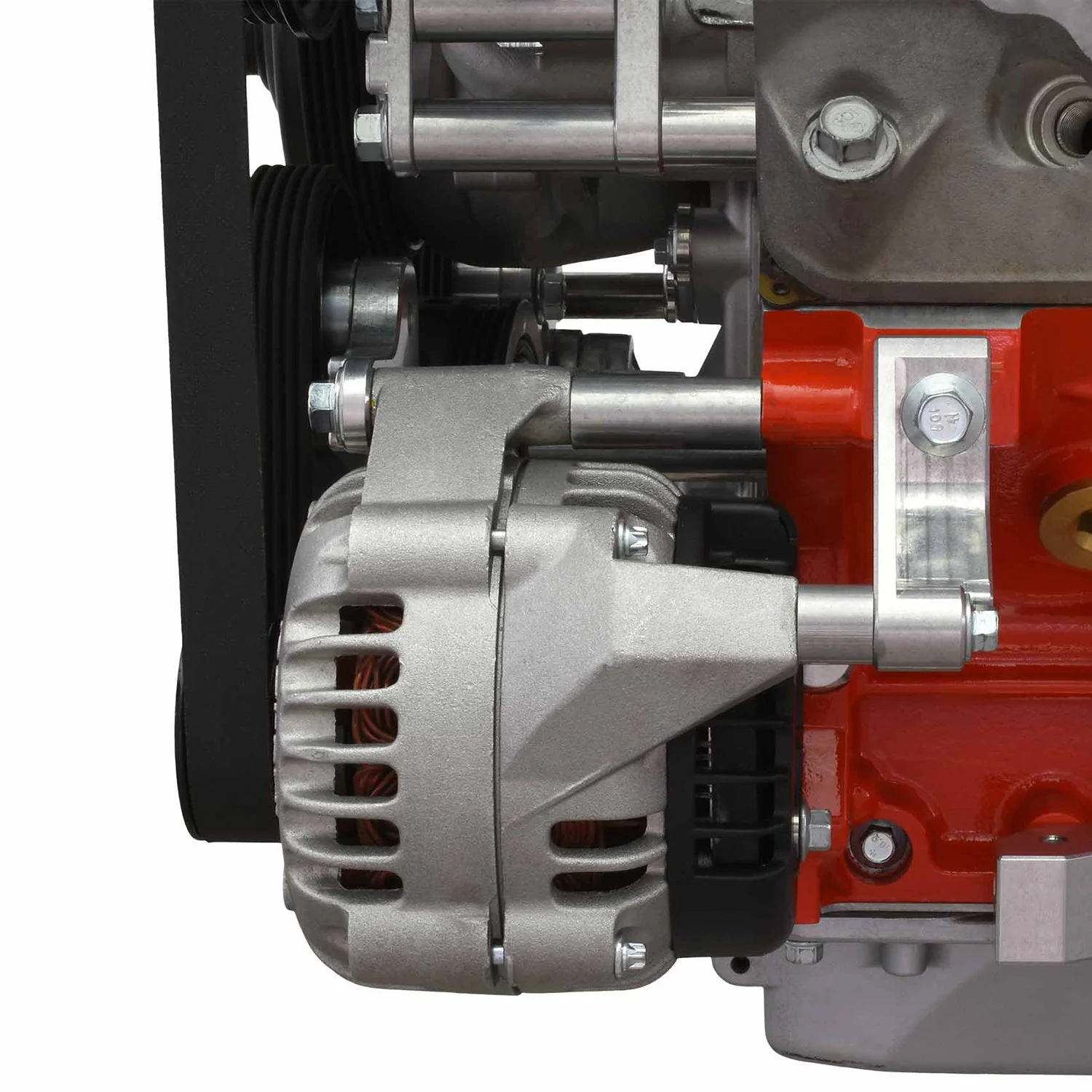

LS3 Truck Spacing - G8 Style - Low Mount Alternator Bracket

Product Details:

• This kit is a recreation of the G8 style low-mount alternator bracket with a more compact idler location, and utilized on the common "Truck" spacing.
• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer

• Uses the "Truck" bolt-pattern alternators.
• Compatible with all LS alternators (Except Corvette, CTS-V or 10-15 Camaro)

• Compatible with: all LS series engines

• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum


*if using an iron engine block, it will only have one of the three holes to mount the alternator.  To get the minimum two holes, use our drill template, then drill & M10 tap.  To get the optional third hole you can use our support bracket

Helpful Links & Guides

• Belt length chart
• Replacement bolt and spacer kit
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Instructions
